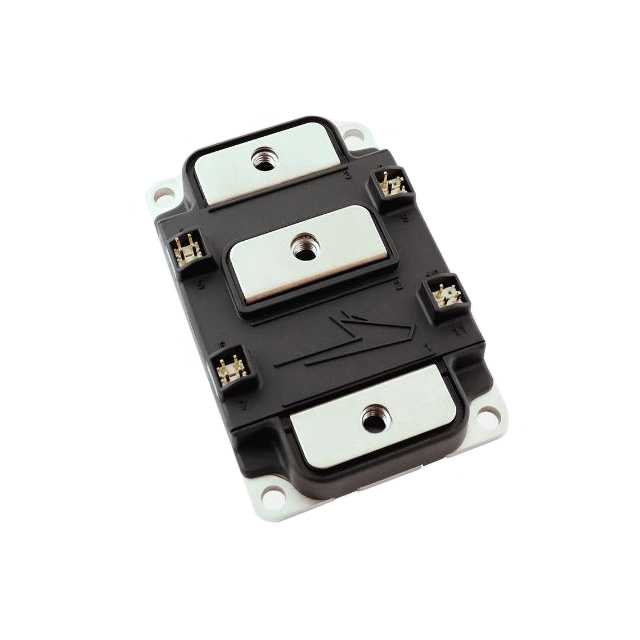

CAB425M12XM3
SIC 2N-CH 1200V 450AManufacturer: Wolfspeed, Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 1200V (1.2kV) 450A Chassis Mount
Additional Information
Series: CAB425M12XM3RoHS Status: unknownManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Configuration | 2 N-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | Silicon Carbide (SiC) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 450A |
| Input Capacitance (Ciss) (Max) @ Vds | 30.7nF @ 800V |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 425A, 15V |
| Gate Charge (Qg) (Max) @ Vgs | 1135nC @ 15V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.6V @ 115mA |
