WI62195
GANFET 2P-CH 750V 9A 14QFNManufacturer: Wise-Integration
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 750V 9A (Tj) Surface Mount 14-PQFN (6x8)
Additional Information
Series: WiseGan™RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 14-PowerLDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Half Bridge) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 750V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tj) |
| Input Capacitance (Ciss) (Max) @ Vds | 53.5pF @ 400V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 2A, 6V |
| Gate Charge (Qg) (Max) @ Vgs | 1.9nC @ 6V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.75V @ 10mA |
| Supplier Device Package | 14-PQFN (6x8) |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

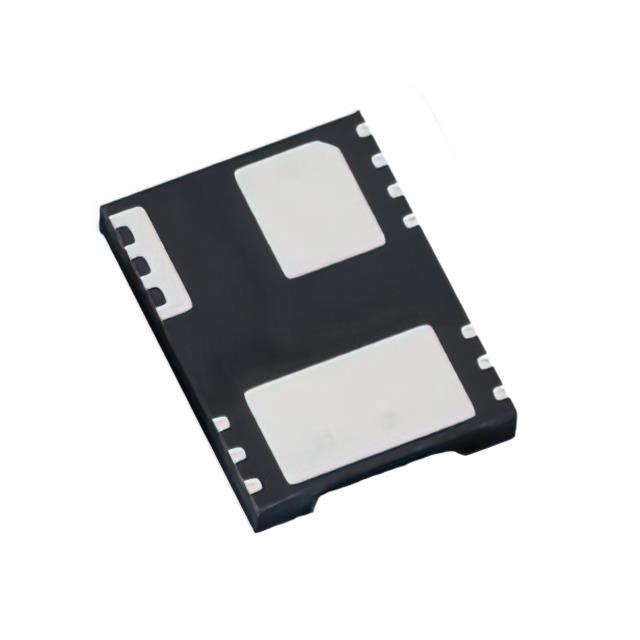

WI62120
