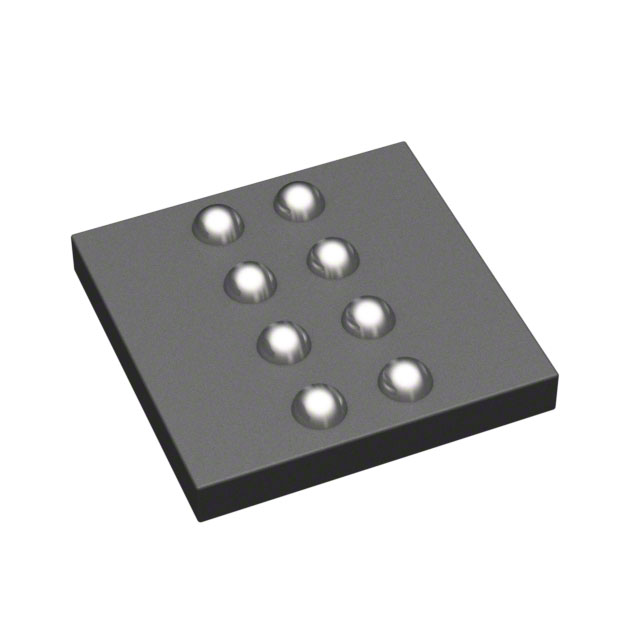

W25Q80EWBYIG TR
IC FLASH 8MBIT SPI/QUAD 8WLCSPManufacturer: Winbond Electronics
Categories: Memory
Quality Control: Learn More
Winbond Electronics SpiFlash® W25Q80EWBYIG-TR is a high-performance 8Mbit NOR Flash memory component. This non-volatile memory device features a Quad SPI interface, enabling efficient data transfer at a clock frequency of 104 MHz. The memory organization is 1M x 8, providing 8Mbit of storage capacity. Designed for surface mounting, it utilizes an 8-WLCSP package with dimensions of 1.68x1.64. The component operates within a supply voltage range of 1.65V to 1.95V and is rated for an operating temperature of -40°C to 85°C. Typical applications include automotive, industrial, and consumer electronics. The write cycle time for a word or page is 800µs. This component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: SpiFlash®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 1.95V |
| Technology | FLASH - NOR |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WLCSP (1.68x1.64) |
| Write Cycle Time - Word, Page | 800µs |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 1M x 8 |
| Programmable | Not Verified |
