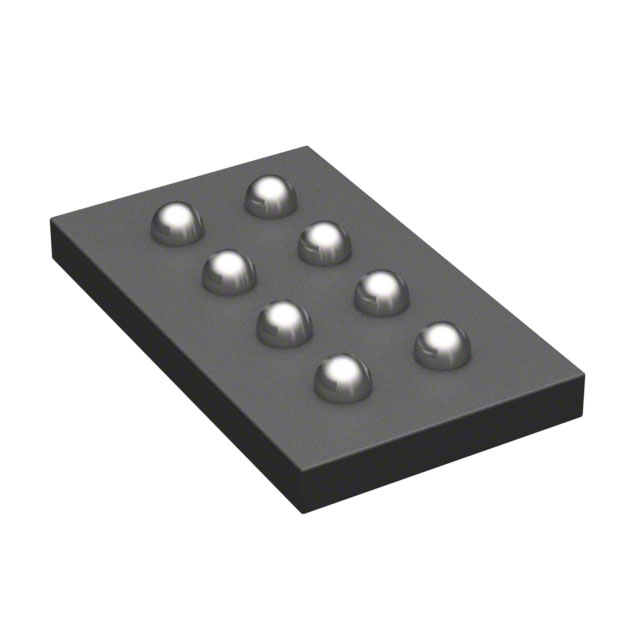

W25Q80BWBYIG TR
IC FLASH 8MBIT SPI/QUAD 8WLCSPManufacturer: Winbond Electronics
Categories: Memory
Quality Control: Learn More
Winbond Electronics SpiFlash® W25Q80BWBYIG-TR is an 8Mbit NOR Flash memory device featuring a Quad SPI interface. This non-volatile memory component operates at a clock frequency of 80 MHz and offers an organization of 1M x 8 bits. Designed for efficient data transfer, it supports Quad I/O operations. The device is housed in an 8-WLCSP package, measuring 1.41x2.37 mm, and is supplied on tape and reel (TR) for automated assembly. With an operating voltage range of 1.65V to 1.95V and an operating temperature range of -40°C to 85°C, this component is suitable for applications in industrial, automotive, and consumer electronics sectors. The write cycle time for a word/page is 800µs.
Additional Information
Series: SpiFlash®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 8Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 1.95V |
| Technology | FLASH - NOR |
| Clock Frequency | 80 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WLCSP (1.41x2.37) |
| Write Cycle Time - Word, Page | 800µs |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 1M x 8 |
| Programmable | Not Verified |
