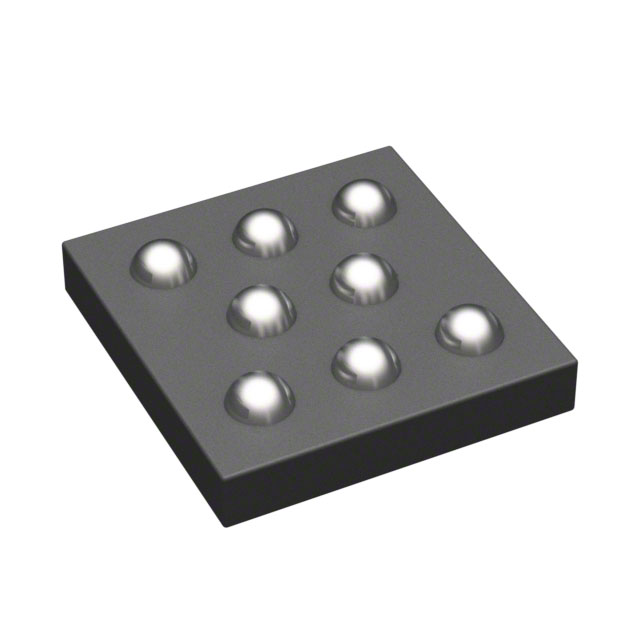

W25Q20EWBYIG TR
IC FLASH 2MBIT SPI/QUAD 8WLCSPManufacturer: Winbond Electronics
Categories: Memory
Quality Control: Learn More
Winbond Electronics SpiFlash® W25Q20EWBYIG-TR is a 2Mbit NOR Flash memory device featuring a Quad SPI interface. This non-volatile memory component operates at a clock frequency of 104 MHz, supporting efficient data transfer. The memory organization is 256K x 8. Designed for surface mount applications, it is housed in an 8-WLCSP (1.4x1.34) package, supplied in Tape & Reel. The operating voltage range is 1.65V to 1.95V, with an ambient temperature range of -40°C to 85°C. Write cycle times are 30µs for word and 800µs for page operations. This component is suitable for various applications including industrial control, consumer electronics, and communications.
Additional Information
Series: SpiFlash®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 2Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 1.95V |
| Technology | FLASH - NOR |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WLCSP (1.4x1.34) |
| Write Cycle Time - Word, Page | 30µs, 800µs |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 256K x 8 |
| Programmable | Not Verified |
