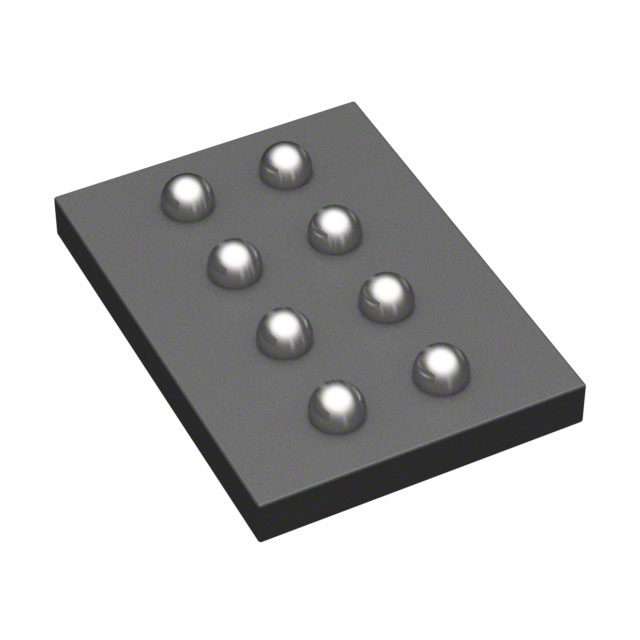

W25Q16DWBYIG TR
IC FLASH 16MBIT SPI/QUAD 8WLCSPManufacturer: Winbond Electronics
Categories: Memory
Quality Control: Learn More
The Winbond Electronics W25Q16DWBYIG-TR is a 16Mbit SpiFlash® NOR flash memory device. This component offers SPI and Quad I/O (QPI) interfaces, enabling high performance with a clock frequency of 104 MHz. The memory organization is 2M x 8, providing efficient data storage. Designed for surface mount applications, it utilizes an 8-WLCSP (1.56x2.16) package, optimized for space-constrained designs. Operating within a voltage range of 1.65V to 1.95V and an ambient temperature range of -40°C to 85°C, this non-volatile memory is suitable for demanding environments. Write cycle times for word and page operations are 40µs and 3ms, respectively. This component finds application in automotive, industrial, and consumer electronics markets where reliable, high-speed flash memory is critical.
Additional Information
Series: SpiFlash®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 1.95V |
| Technology | FLASH - NOR |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WLCSP (1.56x2.16) |
| Write Cycle Time - Word, Page | 40µs, 3ms |
| Memory Interface | SPI - Quad I/O, QPI |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
