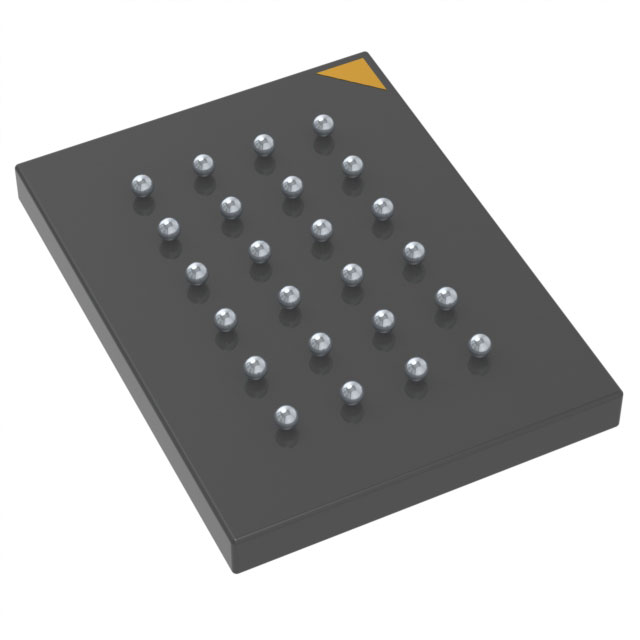

W25Q16DVTCIG
IC FLASH 16MBIT SPI/QUAD 24TFBGAManufacturer: Winbond Electronics
Categories: Memory
Quality Control: Learn More
Winbond Electronics SpiFlash® W25Q16DVTCIG is a 16Mbit non-volatile NOR Flash memory device with a Quad SPI interface. Operating at a 104 MHz clock frequency, this component offers efficient data transfer for demanding applications. Its memory organization is 2M x 8, providing ample storage capacity. The W25Q16DVTCIG features a 2.7V to 3.6V supply voltage range and a -40°C to 85°C operating temperature, making it suitable for industrial environments. The device is housed in a compact 24-TFBGA (8x6) surface-mount package, supplied on tape and reel. Key specifications include a page write cycle time of 3ms and a word write cycle time of 50µs. This memory solution is commonly integrated into automotive, industrial control, and consumer electronics systems.
Additional Information
Series: SpiFlash®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TBGA |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 104 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 24-TFBGA (8x6) |
| Write Cycle Time - Word, Page | 50µs, 3ms |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 2M x 8 |
| Programmable | Not Verified |
