8768650000
DIODE MODULE GP 40V 20AManufacturer: Weidmüller
Categories: Diode Arrays
Quality Control: Learn More

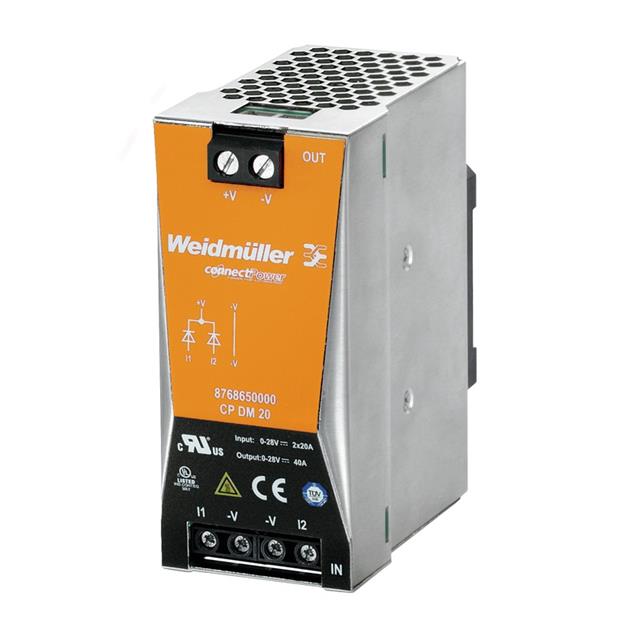

Weidmüller Diode Module, Part Number 8768650000, is a general-purpose diode array featuring a common cathode configuration. This module offers a maximum DC reverse voltage of 40V and a per-diode average rectified current (Io) of 20A. Designed for terminal block mounting, the 8768650000 is suitable for applications within industrial automation and power control systems. It operates within a junction temperature range of -10°C to 55°C. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Terminal Block |
| Speed | - |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -10°C ~ 55°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
Request a Quote
