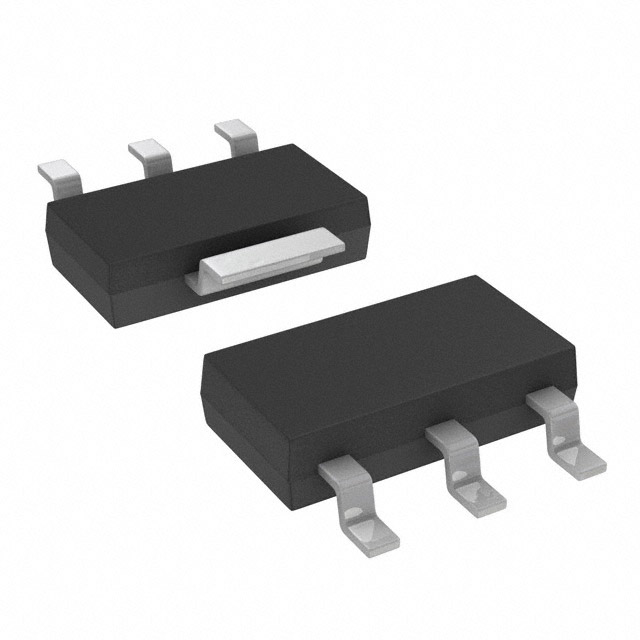

BT134W-800EF
TRIAC ALTERNISTOR 800V 2A SC73Manufacturer: WeEn Semiconductors
Categories: TRIACs
Quality Control: Learn More
TRIAC Alternistor - Snubberless 800 V 2 A Surface Mount SC-73
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 8 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A, 27.5A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Supplier Device Package | SC-73 |
| Current - On State (It (RMS)) (Max) | 2 A |
| Voltage - Off State | 800 V |
