WNSC2D03650MBJ
DIODE SIL CARBIDE 650V 3A SMBManufacturer: WeEn Semiconductors
Categories: Single Diodes
Quality Control: Learn More

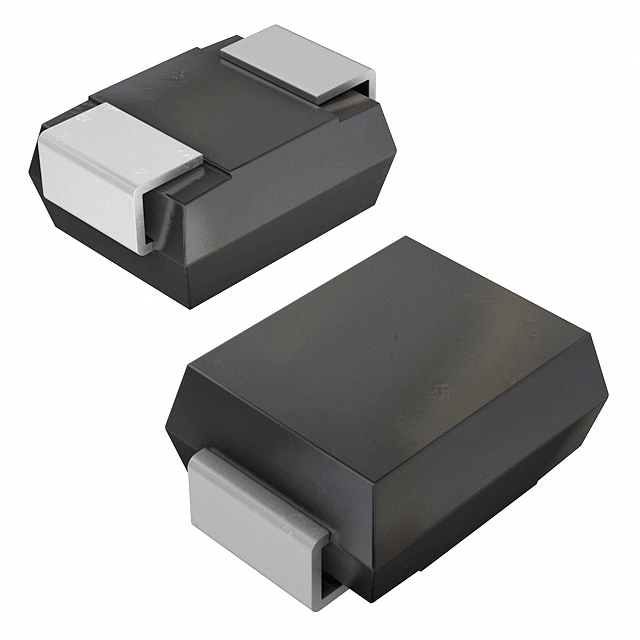

Diode 650 V 3A Surface Mount SMB
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 130pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 3 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 650 V |
Request a Quote
