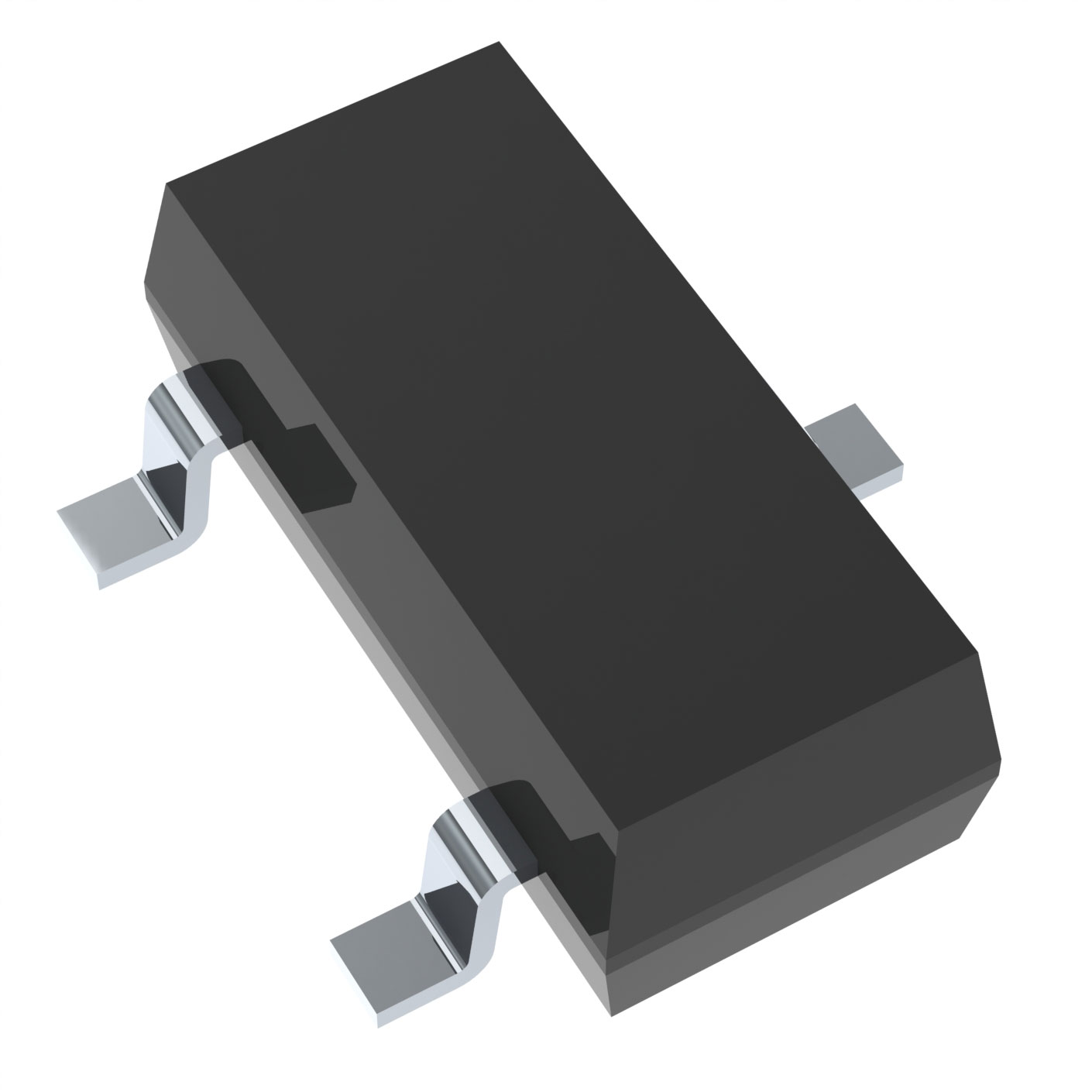

NCR100-8LR
SCR 600V 800MA TO236ABManufacturer: WeEn Semiconductors
Categories: SCRs
Quality Control: Learn More
SCR 600 V 800 mA Sensitive Gate Surface Mount SOT-23-3L
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | 125°C (TJ) |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 9A |
| Current - On State (It (AV)) (Max) | 500 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 100 µA |
| Supplier Device Package | SOT-23-3L |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Voltage - Off State | 600 V |
