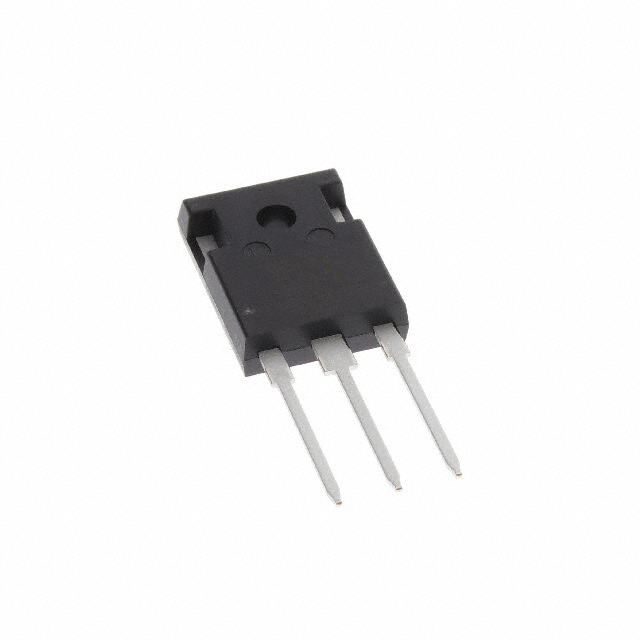

BT155W-1200TQ
SCR 1.2KV 79A TO247-3Manufacturer: WeEn Semiconductors
Categories: SCRs
Quality Control: Learn More
SCR 1.2 kV 79 A Standard Recovery Through Hole TO-247-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | 150°C (TJ) |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 650A, 715A |
| Current - On State (It (AV)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 3 mA |
| Supplier Device Package | TO-247-3 |
| Current - On State (It (RMS)) (Max) | 79 A |
| Voltage - Off State | 1.2 kV |
