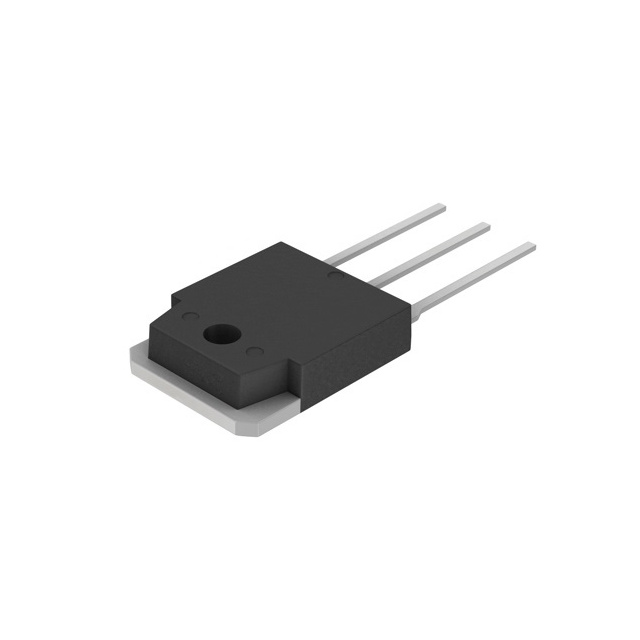

WNSC2D16650CJQ
DIODE ARR SIC SCHOT 650V TO3PFManufacturer: WeEn Semiconductors
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 650 V 16A Through Hole TO-3P-3, SC-65-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 16A |
| Supplier Device Package | TO-3PF |
| Operating Temperature - Junction | 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 8 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
