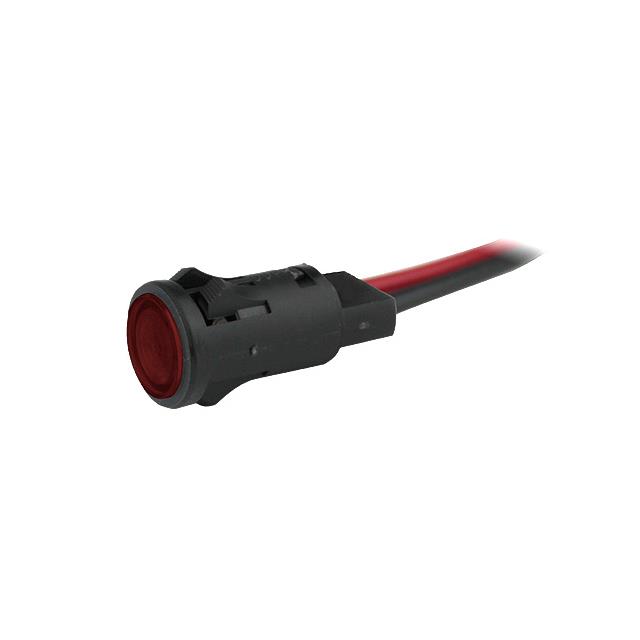

P84W-R12H-CR-R-
PMI ROUND LED .500"" 12V WIRE REDManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Red Fresnel 75° 12V 25mA Wire Leads - 6.000"" (152.40mm)
Additional Information
Series: P80RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 25mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 780mcd |
| Termination Style | Wire Leads - 6.000"" (152.40mm) |
| Lens Color | Red |
| Viewing Angle | 75° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 634nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy
P81W-A12H-CA
PMI LED 0.500"" 12V WIRE AMBER

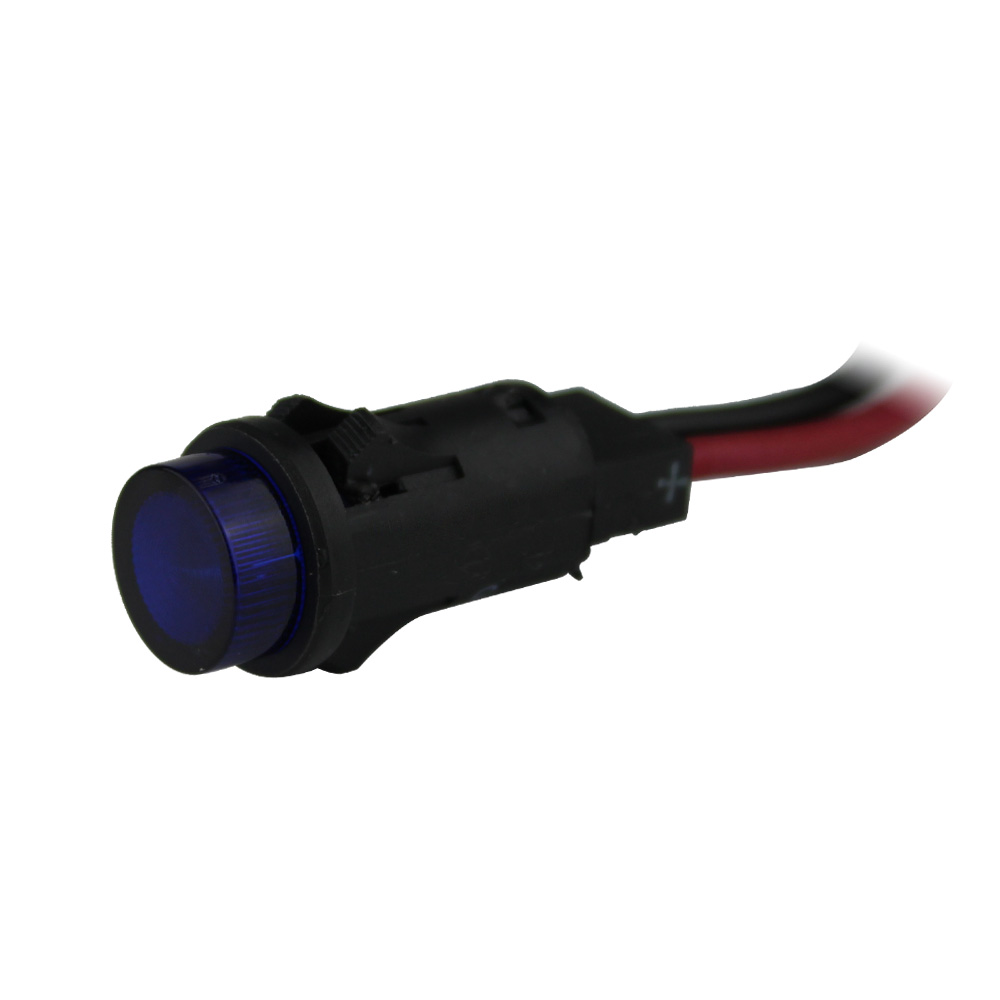

P81W-B12H-CB
