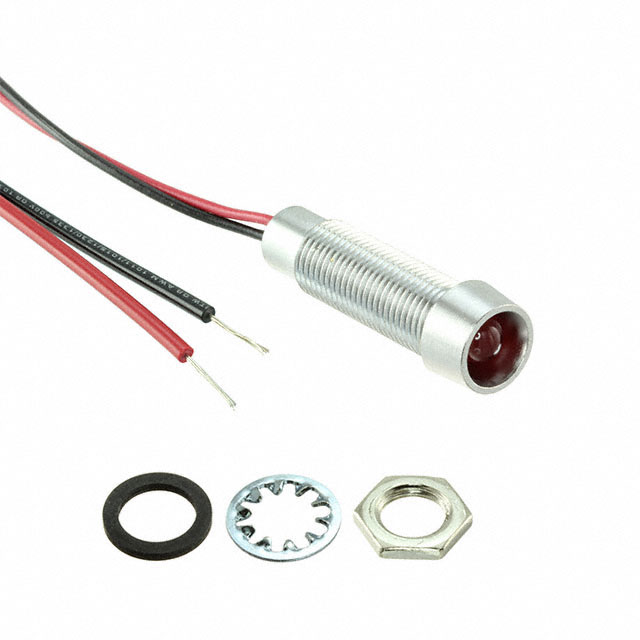

L79D-R12-W
12V RED DIFFUSED LENSManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Visual Communications Company L79 series LED panel indicator, part number L79D-R12-W. This component offers a 12V DC rating with a standard 20mA current draw. It features a red diffused lens with a 60° viewing angle, providing an 80mcd luminous intensity. The unit is terminated with 6-inch wire leads for flexible integration. Designed for panel mounting, it requires a 0.31-inch round cutout. This LED is commonly utilized in industrial control systems, telecommunications equipment, and medical devices where reliable visual status indication is critical.
Additional Information
Series: L79RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 80mcd |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | Red |
| Viewing Angle | 60° |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.31"" (7.87mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

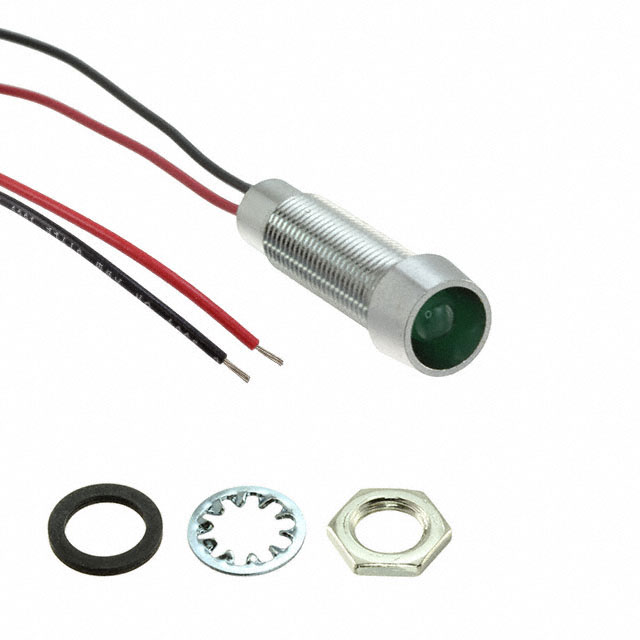

L79D-G12-W
12V GRN DIFFUSED LENS

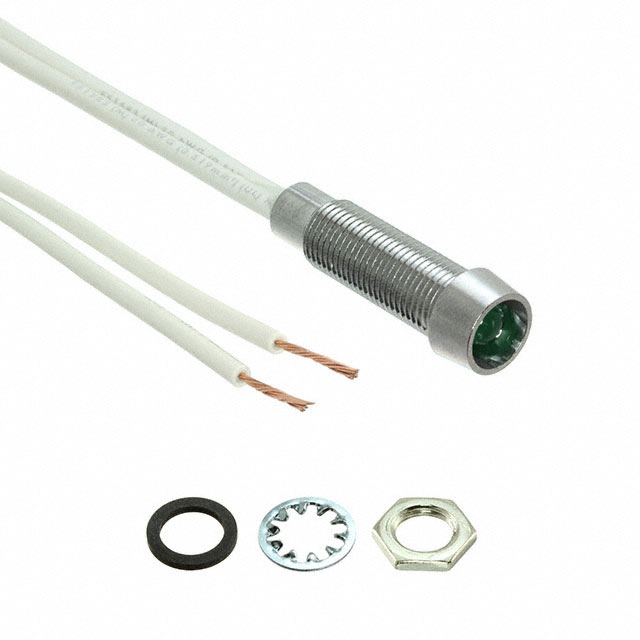

L79D-G125-W
