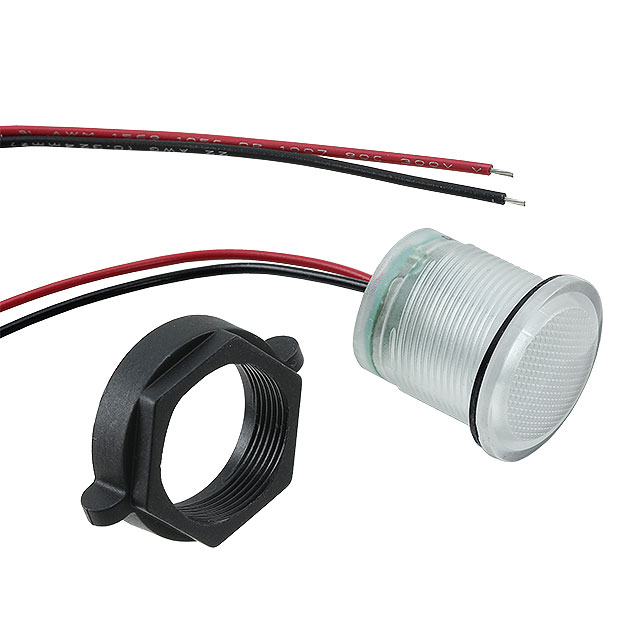

CNX722C900FVW
IND PMI 22MM WH FLEXVOLT WIRE LDManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator White 5V ~ 28V 20mA Wire Leads - 6"" (152.40mm)
Additional Information
Series: CNX 722FVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 5V ~ 28V |
| Type | LED |
| Millicandela Rating | 1300mcd ~ 1700mcd |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
