CNX722C90024T
22MM WHITE 24V SOLDER TERMINALSManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

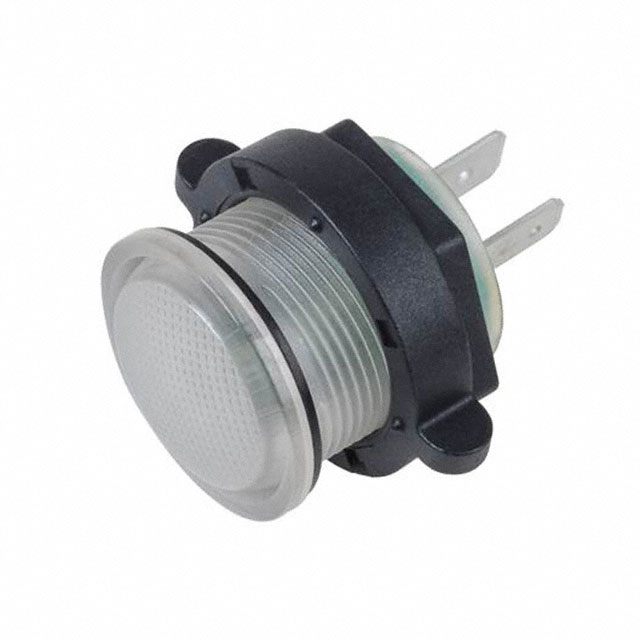

Visual Communications Company (VCC) CNX 722 TuffLED™ series PN CNX722C90024T is a white, diffused LED panel indicator designed for robust applications requiring high ingress protection. This component features a 24V rating and a 20mA current draw, ideal for panel mounting with its 22mm (0.88") round cutout. The unit is equipped with solder lug terminations for secure connections and offers an IP67 and NEMA 6P rating, ensuring durability in harsh environments. Its white diffused lens and 1500mcd millicandela rating deliver clear visual feedback. Applications include industrial control panels, heavy equipment, and any scenario demanding reliable, long-lasting illumination.
Additional Information
Series: CNX 722 TuffLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 1500mcd |
| Termination Style | Solder Lug |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
