CNX722C90012B
22MM WHITE 12V SCREW BLOCKManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

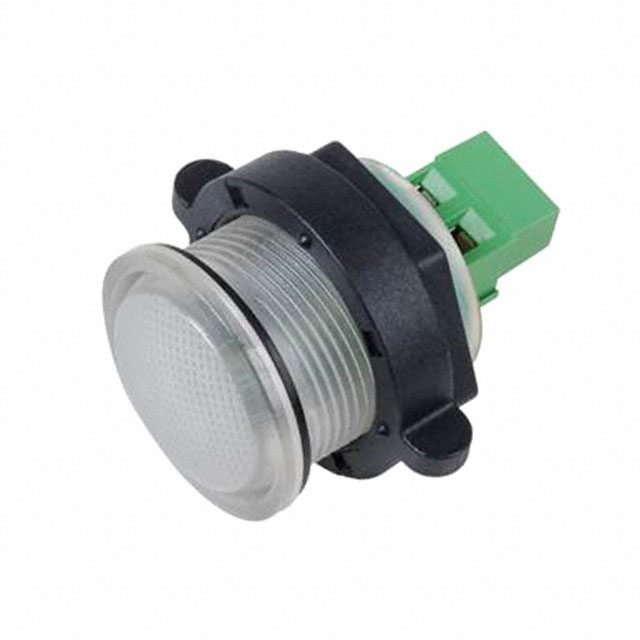

The Visual Communications Company (VCC) CNX 722 C90012B is a 22mm panel mount LED indicator from the CNX 722 TuffLED™ series. This component features a white diffused lens and operates at 12V with a typical current draw of 20mA, delivering a millicandela rating of 1500mcd. Designed for robust environments, it offers IP67 and NEMA 6P ingress protection, making it suitable for demanding applications in industrial automation, commercial lighting, and transportation. The unit is supplied in bulk packaging and utilizes a screw block termination for secure connection. The panel cutout diameter is 0.88 inches (22.35mm) for a round mounting configuration.
Additional Information
Series: CNX 722 TuffLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 1500mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
