CNX722C50024W
22MM GREEN 24V WIRESManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

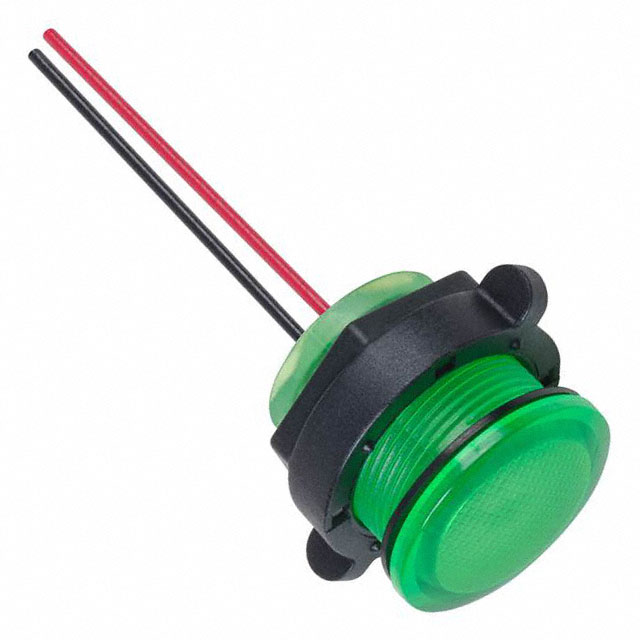

Visual Communications Company (VCC) CNX 722 TuffLED™ series LED panel indicator, part number CNX722C50024W. This green diffused LED features a 24V DC rating and a current draw of 20mA, delivering 1050mcd luminous intensity. Designed for a 22mm panel cutout, it offers robust IP67 and NEMA 6P ingress protection for demanding environments. The unit is supplied with 6-inch wire leads for termination. Applications for this component are found in industrial automation, control panels, and heavy equipment.
Additional Information
Series: CNX 722 TuffLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 1050mcd |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
