CNX722C50024T
LED 22MM GREEN 24V SOLDERManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

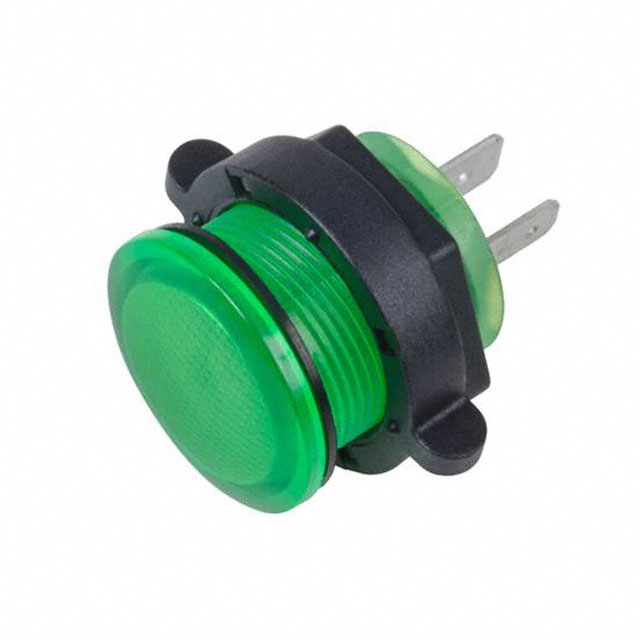

Visual Communications Company (VCC) CNX 722 TuffLED™ series green LED panel indicator, part number CNX722C50024T, offers a 24V DC operation with a 20mA current draw. This diffused green LED features a 22mm panel cutout diameter and a 25.60mm diameter domed lens, providing a robust solution for panel illumination. Built for demanding environments, it boasts IP67 and NEMA 6P ingress protection ratings. The solder lug termination ensures reliable connectivity. With a millicandela rating of 1050mcd, this component is suitable for industrial control panels, automation equipment, and heavy machinery applications where durability and clear visual feedback are critical.
Additional Information
Series: CNX 722 TuffLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 1050mcd |
| Termination Style | Solder Lug |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
