CNX722C40005W
22MM YELLOW 5V WIRESManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

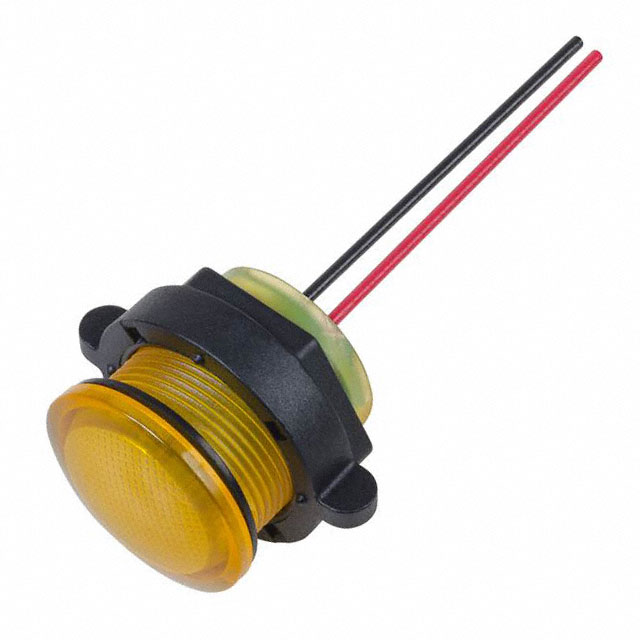

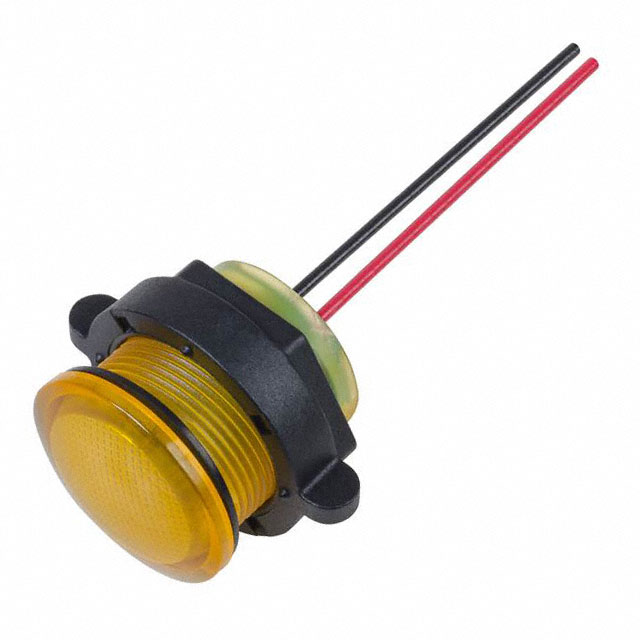

Visual Communications Company (VCC) CNX 722 TuffLED™ series LED panel indicator, part number CNX722C40005W, features a diffused yellow lens with a 25.60mm diameter and a domed top. This 22mm panel mount indicator operates at 5V and draws 20mA, providing a typical millicandela rating of 140mcd. Engineered for robust performance, it offers IP67 and NEMA 6P ingress protection. The component is terminated with 6-inch (152.40mm) wire leads for straightforward integration. Applications for this durable indicator are found in industrial automation, control panels, and heavy equipment where reliable visual feedback is critical.
Additional Information
Series: CNX 722 TuffLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 5V |
| Type | LED |
| Millicandela Rating | 140mcd |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | Yellow |
| Viewing Angle | - |
| Ingress Protection | IP67, NEMA 6P |
| Ratings | DC |
| Panel Cutout Dimensions | 0.88"" (22.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 25.60mm Dia |
Request a Quote
Clients Also Buy
CNX722C50005B
22MM GREEN 5V SCREW BLOCK

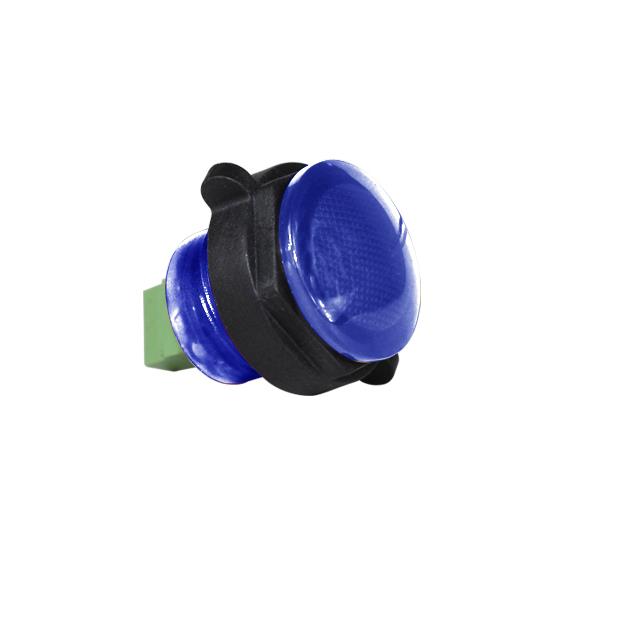

CNX722C600FVB
