CD-0-2700-9908-I
PMI DIA .236"" (6MM) GREEN 12VManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

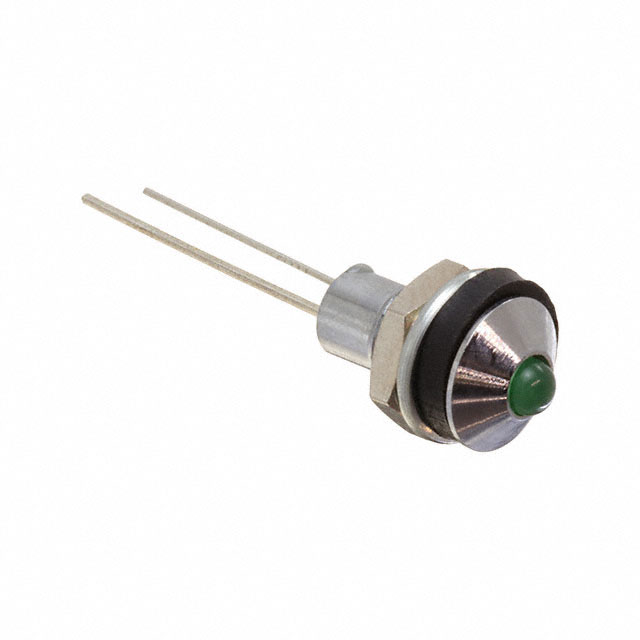

Visual Communications Company (VCC) CD Series LED Panel Indicator, Part Number CD-0-2700-9908-I. This component features a green, domed-top lens with a 60° viewing angle and a 574nm peak wavelength, providing 199mcd luminous intensity. Designed for a 12V DC supply, it operates at a nominal 20mA. The indicator utilizes PC pin termination and is rated for IP67 ingress protection, making it suitable for demanding environments across industrial automation, building controls, and medical equipment sectors. The panel cutout requirement is a 0.236-inch (6.00mm) round opening. Supplied in a bag.
Additional Information
Series: CDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 199mcd |
| Termination Style | PC Pin |
| Lens Color | Green |
| Viewing Angle | 60° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.236"" (6.00mm) |
| Wavelength - Peak | 574nm |
| Lens Transparency | - |
| Lamp Color | - |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
