CCLB-2-3061-9909-W
SEALED LED INDICATOR WHITEManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

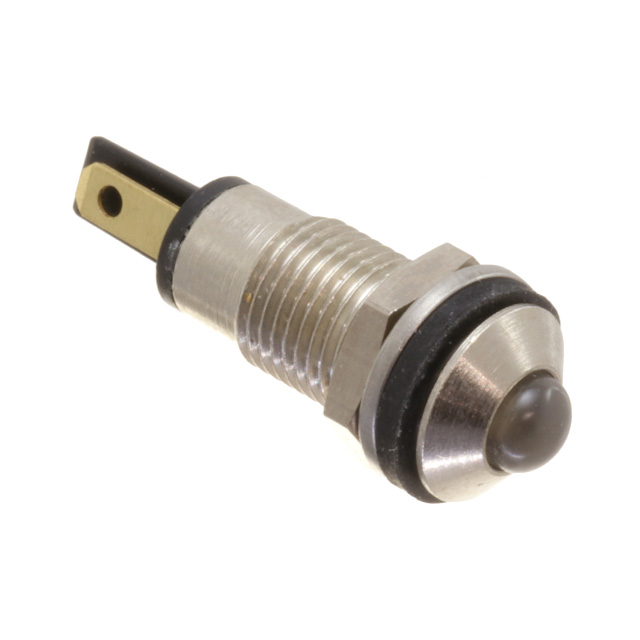

Visual Communications Company (VCC) CCLB Series LED Panel Indicator, part number CCLB-2-3061-9909-W. This sealed, white LED indicator features a 15° viewing angle and operates at 12V with a 20mA current draw, producing a typical luminous intensity of 27000mcd. The unit employs a 0.110" (2.8mm) quick connect termination style for efficient assembly. Designed for a 0.32" (8.10mm) round panel cutout, its domed lens style ensures broad illumination. This component is suitable for applications in industrial automation, transportation, and medical equipment where reliable visual feedback is critical.
Additional Information
Series: CCLBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 27000mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | - |
| Viewing Angle | 15° |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.10mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
