CCLB-2-3057-9909-W
SEALED LED INDICATOR BLUEManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

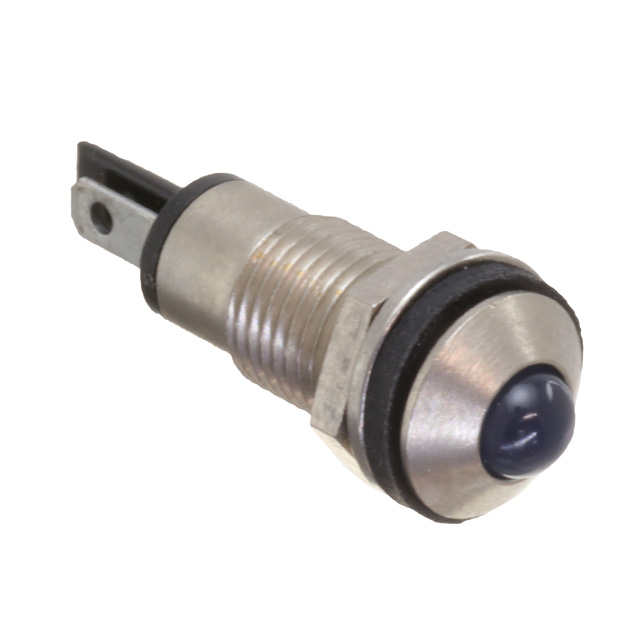

Visual Communications Company (VCC) CCLB Series sealed LED indicator, part number CCLB-2-3057-9909-W, is a blue LED panel indicator designed for reliable operation. Featuring a 20° viewing angle and a peak wavelength of 468nm, this component delivers 640mcd luminous intensity at a forward voltage of 12V and a current of 20mA. The indicator utilizes a quick connect termination style with 0.110" (2.8mm) terminals and is housed in a round, domed-top lens style suitable for a 0.32" (8.10mm) panel cutout. This robust panel indicator finds application in industrial control systems, communication equipment, and medical devices where dependable status indication is critical.
Additional Information
Series: CCLBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 640mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | - |
| Viewing Angle | 20° |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.10mm) |
| Wavelength - Peak | 468nm |
| Lens Transparency | - |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
