CCLB-2-3036-9923-W
SEALED LED INDICATOR SUPER ULTRAManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

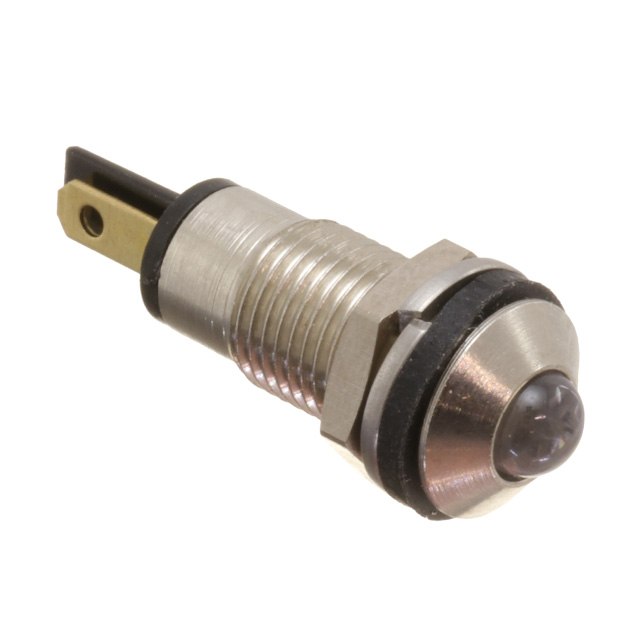

Visual Communications Company (VCC) CCLB Series sealed LED panel indicator, part number CCLB-2-3036-9923-W, offers robust performance for demanding applications. This red LED features a 20° viewing angle and a peak wavelength of 660nm, delivering a high luminous intensity of 2800 mcd at a forward current of 20mA and a 28V operating voltage. The unit is equipped with a 0.110" (2.8mm) quick connect termination for efficient installation. Designed with a round, domed lens and a panel cutout diameter of 0.32" (8.10mm), it provides clear visual indication. The sealed construction ensures reliability in various environmental conditions. This component is commonly utilized in industrial control systems, telecommunications equipment, and medical devices.
Additional Information
Series: CCLBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 28V |
| Type | LED |
| Millicandela Rating | 2800mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | - |
| Viewing Angle | 20° |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.10mm) |
| Wavelength - Peak | 660nm |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
