C41-BG24H-CGO
PMI-PROC-PL-16*DN GREENManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

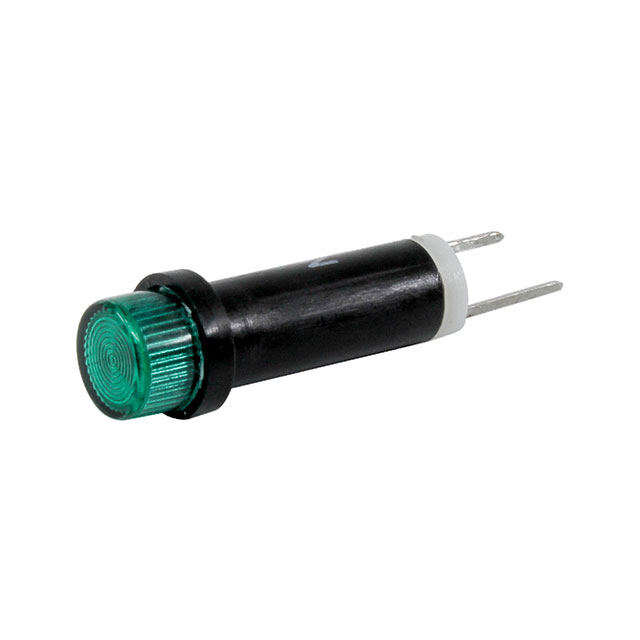

Visual Communications Company (VCC) Series 41 LED Panel Indicator, Part Number C41-BG24H-CGO, offers a green LED with a clear, round lens measuring 7.11mm in diameter. This component is designed for panel mounting with a standard 0.25-inch (6.35mm) round cutout. It features a PC pin termination style and operates at a nominal 24V with a typical current draw of 17mA. The indicator provides a 60° viewing angle and a peak wavelength of 565nm, delivering a millicandela rating of 10mcd. This component is suitable for applications in industrial control, instrumentation, and machinery, where reliable visual status indication is critical.
Additional Information
Series: 41RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 17mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 10mcd |
| Termination Style | PC Pin |
| Lens Color | Green |
| Viewing Angle | 60° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 565nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 7.11mm Dia |
