6091MX5-12V
INDICATOR SOLID STATE GRN PNL MTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
The Visual Communications Company (VCC) 6091MX5-12V is a 6091M series solid-state LED panel indicator designed for reliable visual feedback. This component features a vibrant green illumination, powered by a 12V input. Terminated with 4.6-inch wire leads for straightforward integration, it boasts an oil-resistant build and NEMA 13 ingress protection, making it suitable for demanding industrial environments. The indicator features a 9.90mm diameter round lens with a domed top and requires a 0.38-inch (9.65mm) round panel cutout for mounting. Applications for this component include industrial control panels, automation systems, and heavy equipment where robust and clear status indication is critical.
Additional Information
Series: 6091MRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Oil Resistant |
| Packaging | Bag |
| Current | - |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 4.6"" (116.84mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | NEMA 13 |
| Ratings | - |
| Panel Cutout Dimensions | 0.38"" (9.65mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 9.90mm Dia |
Request a Quote
Clients Also Buy

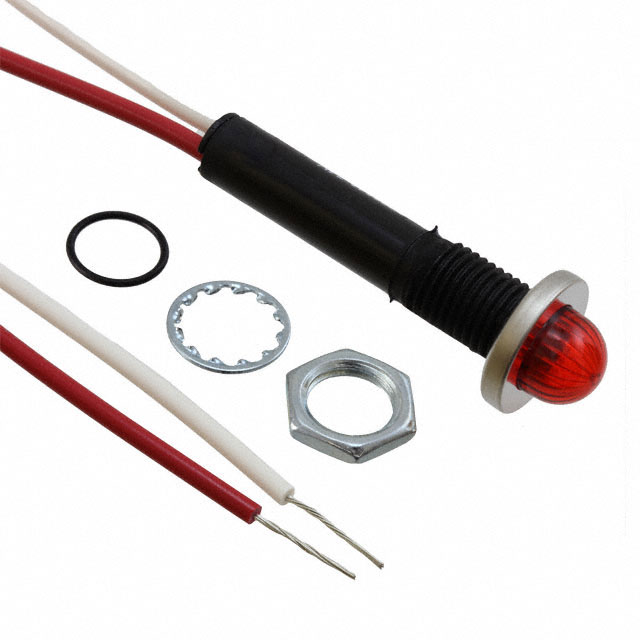

6091M1-12V
INDICATOR SOLID STATE RED PNL MT

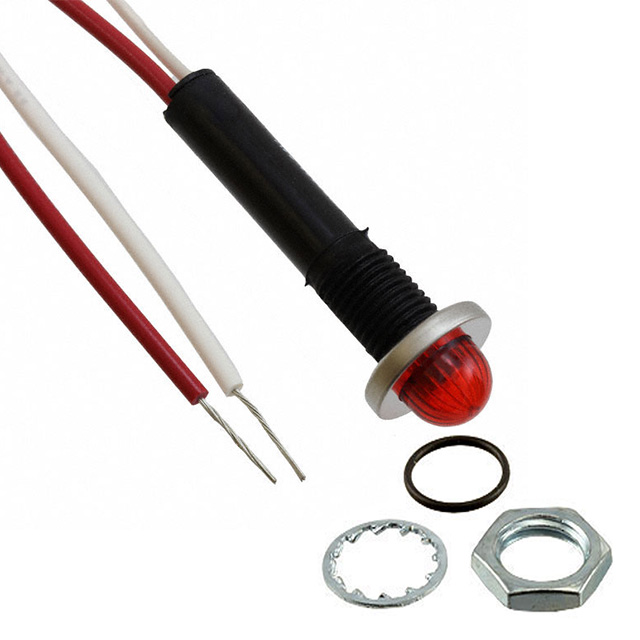

6091M1-24V
INDICATOR SOLID STATE RED PNL MT

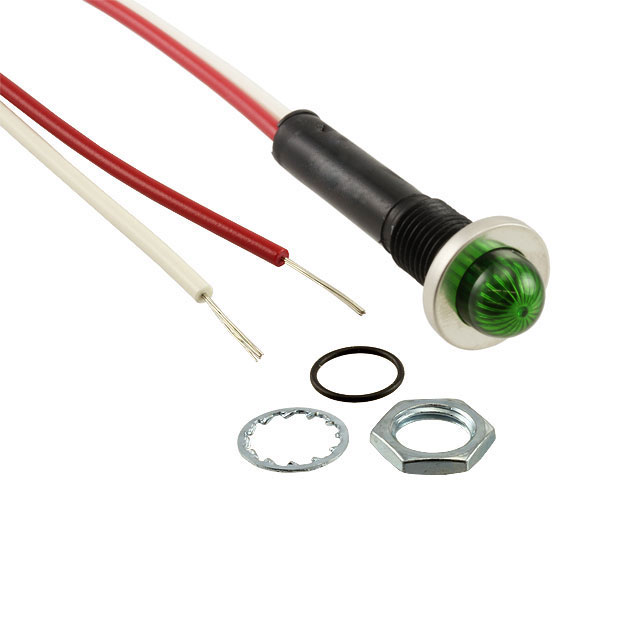

6091M5-12V
