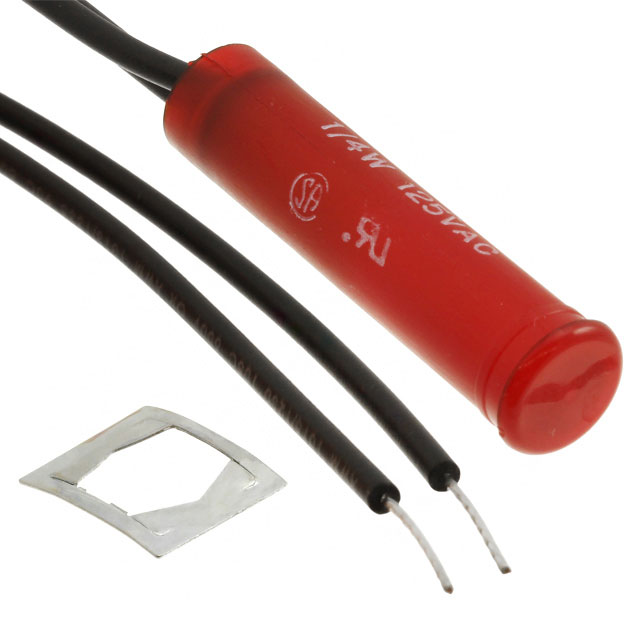

6063-001-534R
NEON PANEL INDICATOR RED 125VManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Visual Communications Company (VCC) 6063-001-534R is a neon panel indicator designed for clear visual feedback. This component features a red lens and operates at 125V AC, providing a distinct indication. The 6063 series indicator is equipped with 10-inch (254.00mm) wire leads for straightforward termination. Its round lens with a flat top and a 0.38-inch (9.65mm) panel cutout diameter make it suitable for integration into various panel-mounted equipment. This neon indicator finds application in industrial control systems, power supply status indication, and general equipment monitoring across multiple industries.
Additional Information
Series: 6063RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | - |
| Voltage | 125V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 10"" (254.00mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.38"" (9.65mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.67mm Dia |
