6039-004-304R
LED RED DIFF 2V WIRE LEADSManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

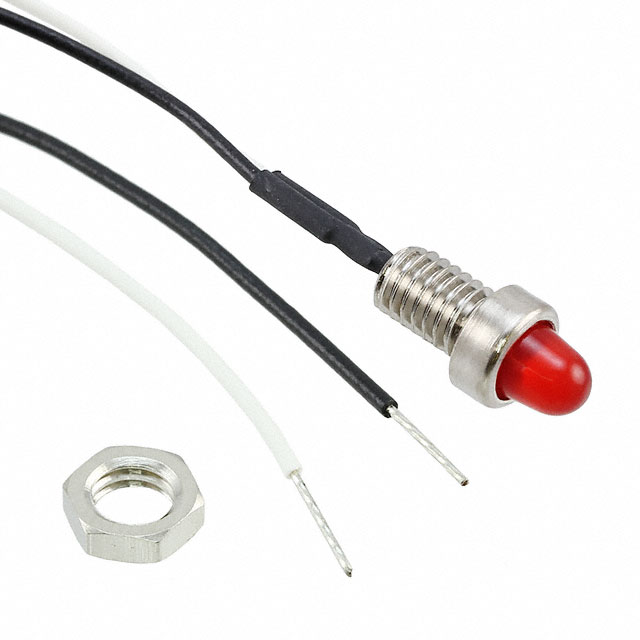

Visual Communications Company (VCC) Astrolite series LED indicator, part number 6039-004-304R, features a red diffused lens with a 60° viewing angle. This panel mount LED operates at a typical forward voltage of 2V and a maximum forward current of 25mA, delivering a millicandela rating of 200mcd. The component is designed for direct wire lead termination and is suitable for applications requiring clear visual feedback in industrial automation, control panels, and diagnostic equipment. Its robust construction and reliable performance make it a staple in demanding environments.
Additional Information
Series: AstroliteRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 25mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 200mcd |
| Termination Style | - |
| Lens Color | - |
| Viewing Angle | 60° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 639nm |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

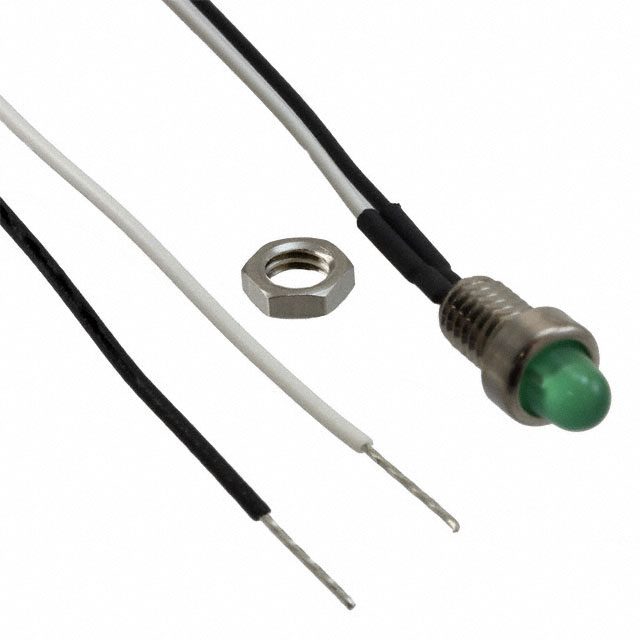

6039-004-304G-A
