6012QM5
NEON LAMP GREEN 125V PNL MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

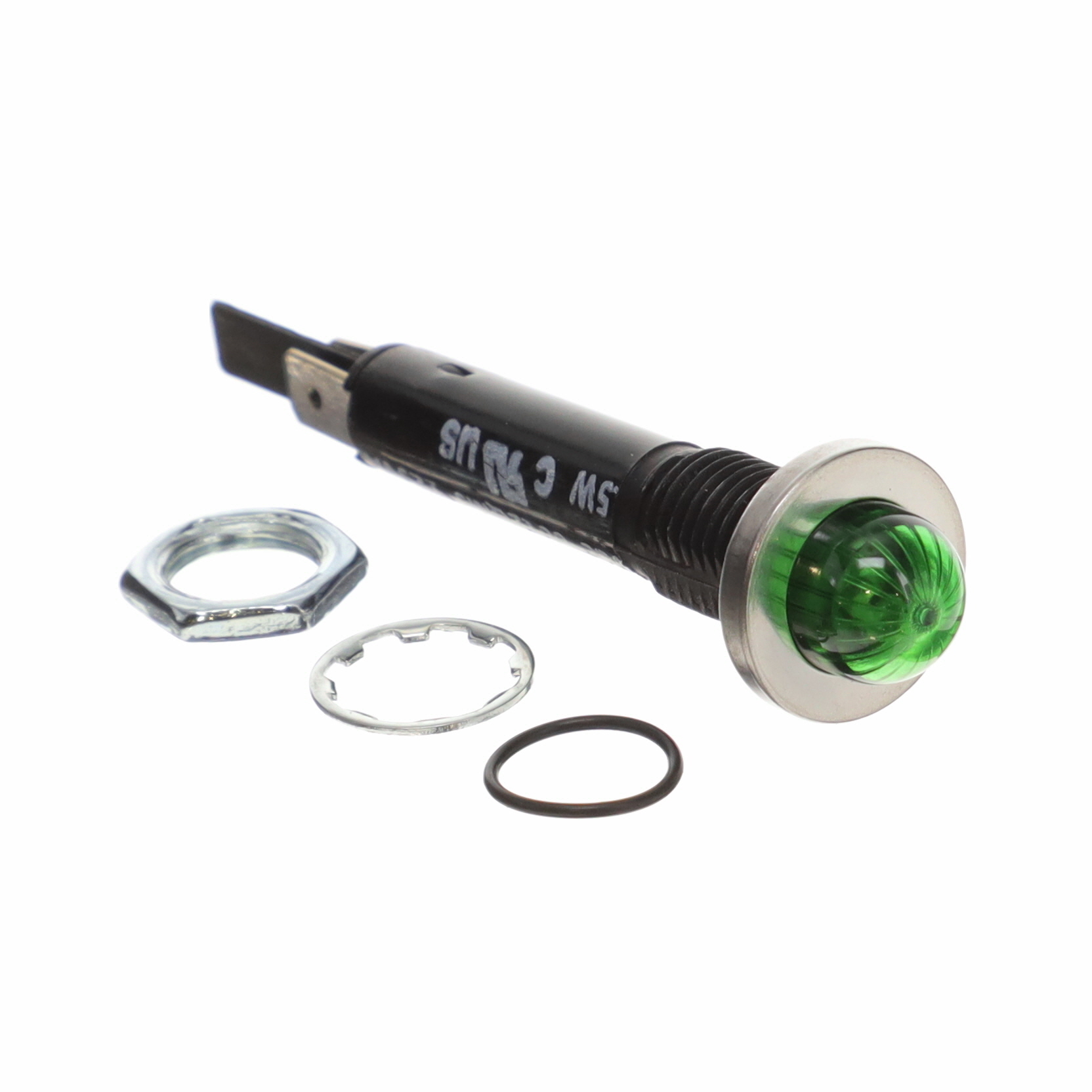

Visual Communications Company (VCC) 6012QM5 is a neon panel indicator featuring a green lamp. This component is designed for panel mounting and operates within a voltage range of 105V to 125V AC. The 6012Q series indicator utilizes quick connect terminations, specifically 0.187" (4.7mm) terminals for efficient assembly. It boasts an oil-resistant feature and meets NEMA 13 ingress protection standards, making it suitable for demanding industrial environments. The lens is round with a domed top, measuring 9.90mm in diameter, and requires a 0.38" (9.65mm) round panel cutout. This VCC neon indicator is commonly found in industrial control panels, machinery, and electrical equipment.
Additional Information
Series: 6012QRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Oil Resistant |
| Packaging | Bulk |
| Current | - |
| Voltage | 105V ~ 125V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Quick Connect - 0.187"" (4.7mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | NEMA 13 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.38"" (9.65mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 9.90mm Dia |
