6011M3
INDICATOR NEON AMBER PANEL MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

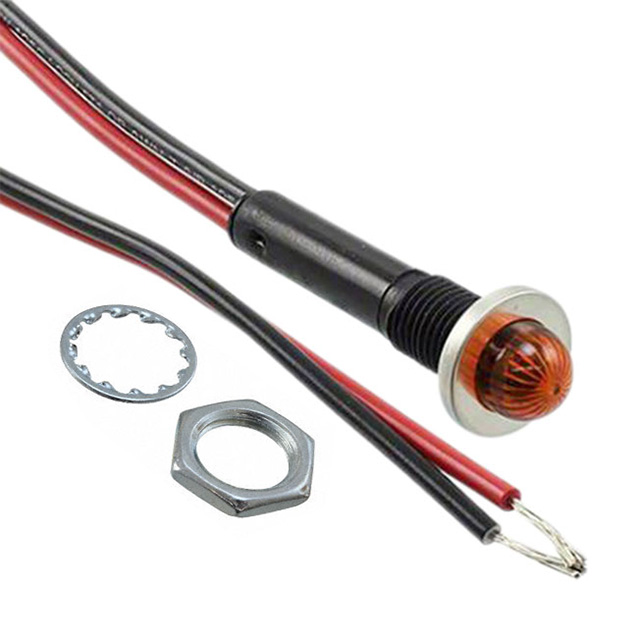

Visual Communications Company (VCC) 6011M Series neon panel indicator, part number 6011M3, is designed for robust signaling applications. This component features a distinctive amber illumination, operating within a voltage range of 208V to 250V AC. The indicator is equipped with 4.6-inch wire leads for termination and a round, domed lens with a nominal diameter of 9.90mm. It is designed for panel mounting with a standard 0.38-inch (9.65mm) round cutout. Notably, this indicator offers NEMA 13 ingress protection and features oil-resistant characteristics, making it suitable for demanding environments. Typical applications for this type of component include industrial control panels, heavy equipment, and electrical enclosures where reliable visual status indication is critical.
Additional Information
Series: 6011MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Oil Resistant |
| Packaging | Bag |
| Current | - |
| Voltage | 208V ~ 250V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 4.6"" (116.84mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | NEMA 13 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.38"" (9.65mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 9.90mm Dia |
