6010QM1
INDICATOR NEON RED PANEL MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

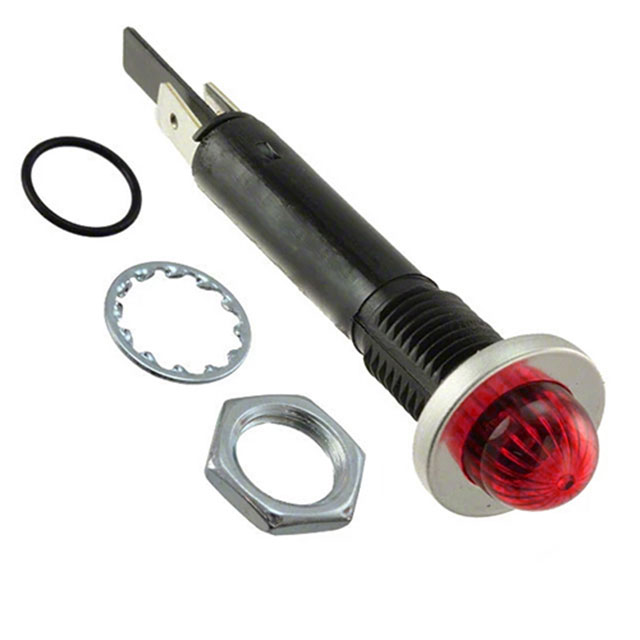

Visual Communications Company (VCC) 6010QM1 is a neon panel indicator from the 6010Q series, designed for reliable visual status indication. This component features a red lamp color with a round, domed top lens measuring 9.90mm in diameter, offering excellent visibility. The unit operates within a voltage range of 105V to 125V AC and terminates via 0.187" (4.7mm) quick connects for efficient panel mounting. The indicator requires a 0.38" (9.65mm) round panel cutout. Its construction includes oil-resistant features, enhancing durability in demanding environments. This component is commonly utilized in industrial control panels, power supply units, and equipment status monitoring across various manufacturing and automation sectors.
Additional Information
Series: 6010QRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Oil Resistant |
| Packaging | Bag |
| Current | - |
| Voltage | 105V ~ 125V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Quick Connect - 0.187"" (4.7mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.38"" (9.65mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 9.90mm Dia |
Request a Quote
