5111F7
LED YELLOW 5/32"" HOLE PANEL MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

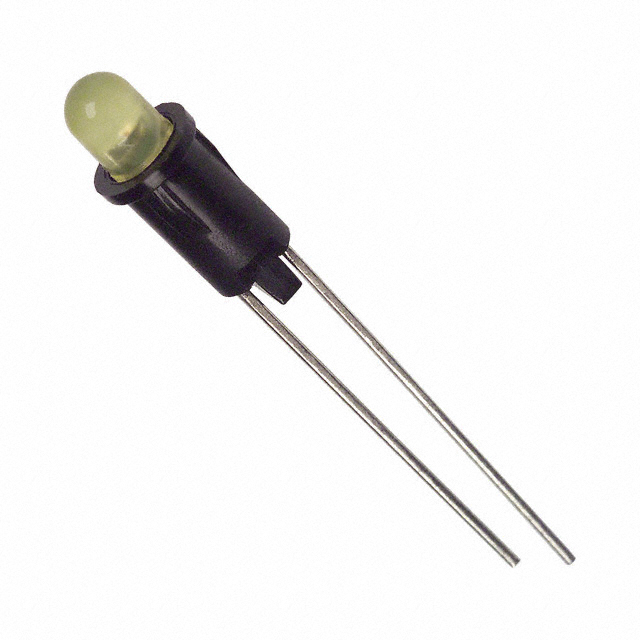

Visual Communications Company (VCC) 5111F7 is a panel mount LED indicator featuring a yellow diffused lens. This T-1 size, round domed LED operates with a typical forward voltage of 2.1V and a maximum forward current of 30mA, delivering 6.3mcd luminous intensity at a peak wavelength of 585nm. The component is designed for panel mounting with a 0.16" (4.06mm) round cutout and utilizes a wire wrap termination style. Commonly employed in industrial control panels, instrumentation, and general equipment signaling, the VCC 5111F series provides reliable visual feedback. This bulk-packaged component ensures efficient integration into high-volume manufacturing processes.
Additional Information
Series: 5111FRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 30mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 6.3mcd |
| Termination Style | Wire Wrap |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.16"" (4.06mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

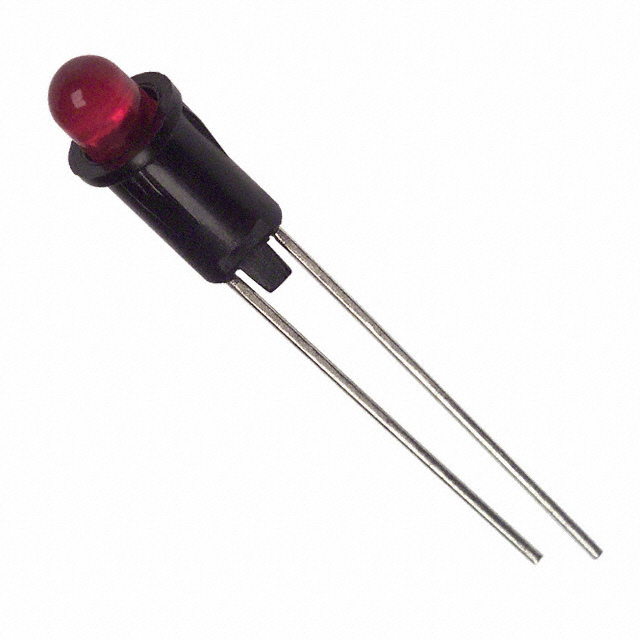

5111F1
