5101H5
LED GREEN 1/4"" HOLE PANEL MOUNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

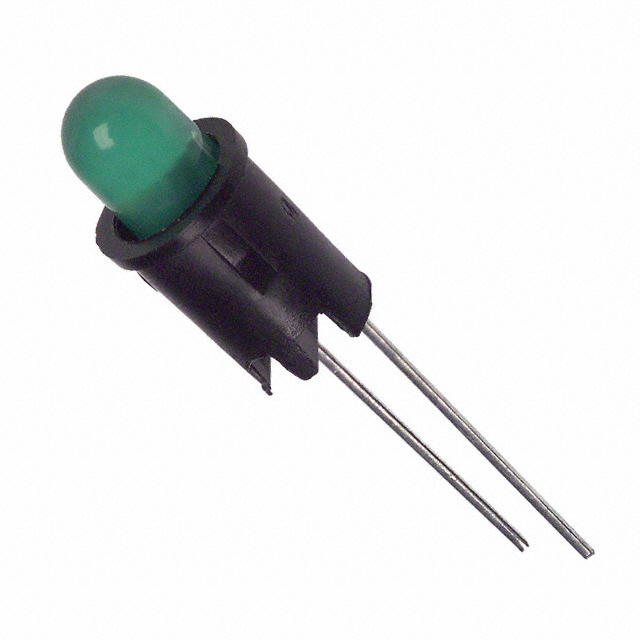

Visual Communications Company (VCC) 5101H Series LED with part number 5101H5. This panel mount indicator features a green LED with a typical forward voltage of 2.1V and a maximum forward current of 60mA. The component is designed for a 0.25-inch (6.35mm) round panel cutout and utilizes wire wrap termination. It offers a typical luminous intensity of 10 millicandela at a peak wavelength of 563nm. This component is suitable for applications in industrial automation, control panels, and test equipment. The product is supplied in bulk packaging.
Additional Information
Series: 5101HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 60mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 10mcd |
| Termination Style | Wire Wrap |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 563nm |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
