5101H1
LED RED 1/4"" HOLE PANEL MOUNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

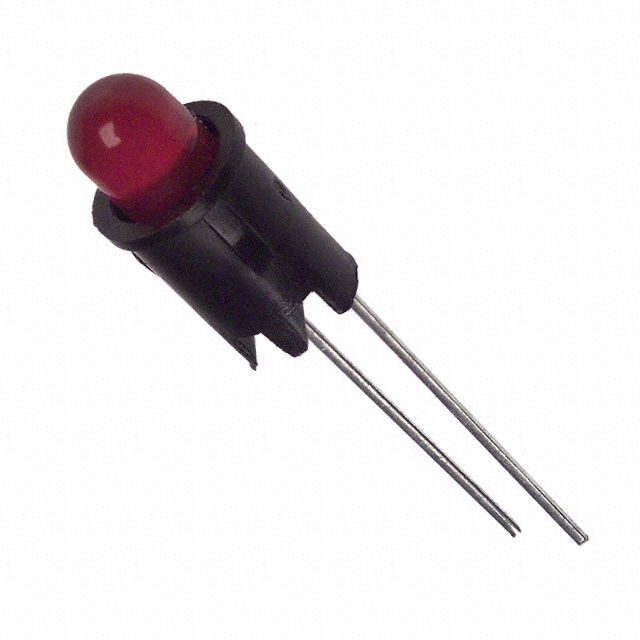

Visual Communications Company (VCC) 5101H1 is a red LED panel indicator designed for reliable illumination in demanding applications. This component features a 2.2V forward voltage and a maximum continuous forward current of 60mA, delivering a typical luminous intensity of 6.3 millicandela at its peak wavelength of 650nm. The 5101H series indicator is designed for easy panel mounting, requiring a standard 0.25-inch (6.35mm) round cutout. Termination is via wire wrap for secure and efficient electrical connections. This robust panel indicator is commonly utilized in industrial control systems, test and measurement equipment, and communication infrastructure where clear visual status indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: 5101HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 60mA |
| Voltage | 2.2V |
| Type | LED |
| Millicandela Rating | 6.3mcd |
| Termination Style | Wire Wrap |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 650nm |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
