41ENG3-2311
INCANDESCENT PANEL INDICATOR 14VManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

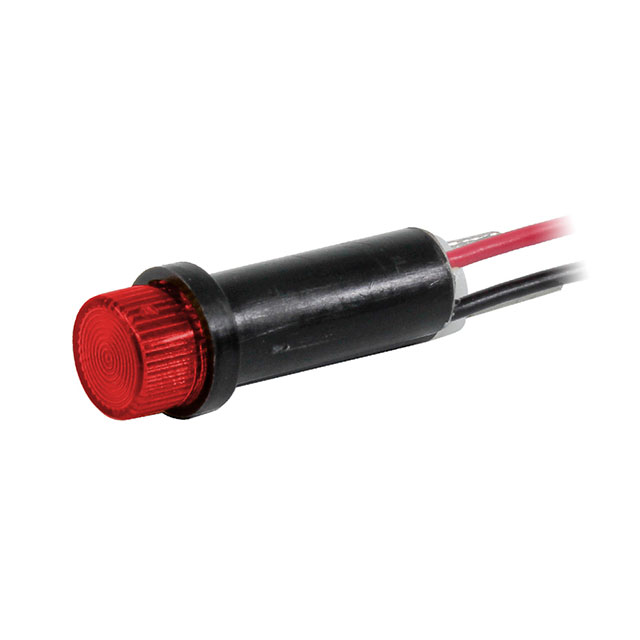

Visual Communications Company (VCC) 41 Series incandescent panel indicator, part number 41ENG3-2311, offers a robust solution for visual status indication. This component operates at 14V with a current draw of 100mA and features wire leads extending 6 inches (152.40mm) for flexible termination. Designed for panel mounting, it requires a 0.31-inch (7.87mm) round cutout. The indicator is equipped with a red, round lens with a flat top, measuring 7.54mm in diameter. This component finds application in industrial automation, control panels, and various electronic equipment requiring reliable visual feedback.
Additional Information
Series: 41RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 100mA |
| Voltage | 14V |
| Type | Incandescent |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 6"" (152.40mm) |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.31"" (7.87mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | - |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 7.54mm Dia |
Request a Quote
