2152AX5
LAMP NEON INCAND GREEN PNL MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

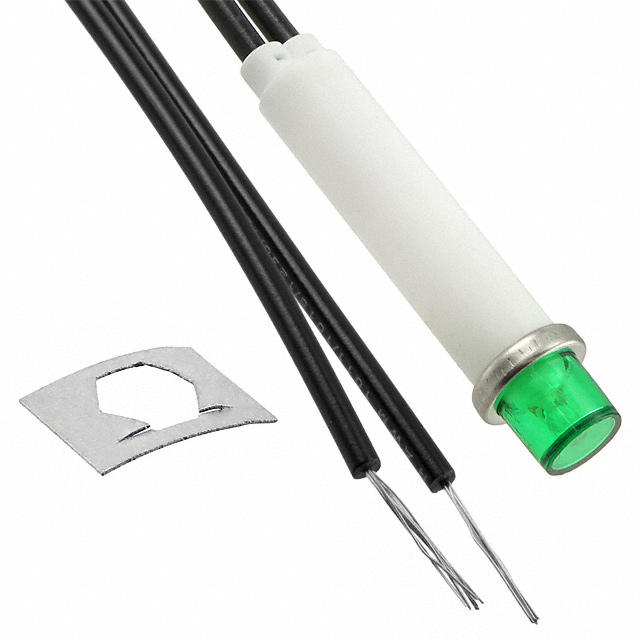

Visual Communications Company (VCC) 2152AX5 is a neon panel indicator from the 2152A series, designed for reliable visual feedback in demanding applications. This component features a green lamp color with a clear, round lens, providing distinct illumination. It operates within a voltage range of 105V AC to 125V AC. The termination style is wire leads, extending 4.6 inches (116.84mm) for flexible installation. The panel cutout required is a round 0.31-inch (7.87mm) diameter. This neon indicator is suitable for industrial control panels, power supply status indication, and other general-purpose equipment where robust and visible signaling is essential.
Additional Information
Series: 2152ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | - |
| Voltage | 105V ~ 125V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 4.6"" (116.84mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.31"" (7.87mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
