2110A1
LAMP NEON RED 120V PC MNTManufacturer: Visual Communications Company - VCC
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

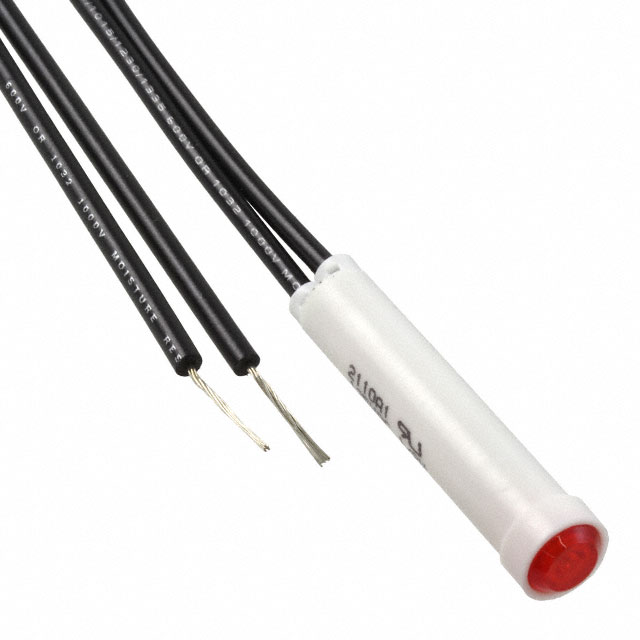

The Visual Communications Company (VCC) 2110A1 is a neon panel indicator designed for AC voltage applications. This component features a clear, round lens with a flat top, providing a distinct red illumination. Rated for operation between 105V and 125V AC, the 2110A1 is equipped with 4.6-inch wire leads for termination. Its panel mount design includes a standard 0.31-inch round cutout. This indicator is suitable for use in industrial control panels, appliance status indication, and general signaling applications where a reliable visual cue is required.
Additional Information
Series: 2110ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | - |
| Voltage | 105V ~ 125V |
| Type | Neon |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 4.6"" (116.84mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.31"" (7.87mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

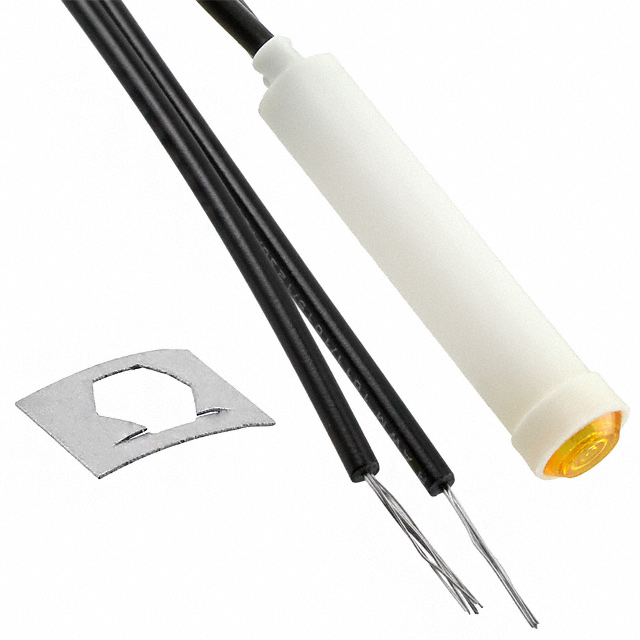

2110A3
INDICATOR NEON AMBER PANEL MNT
2110A4
INDICATOR NEON WHITE PANEL MNT

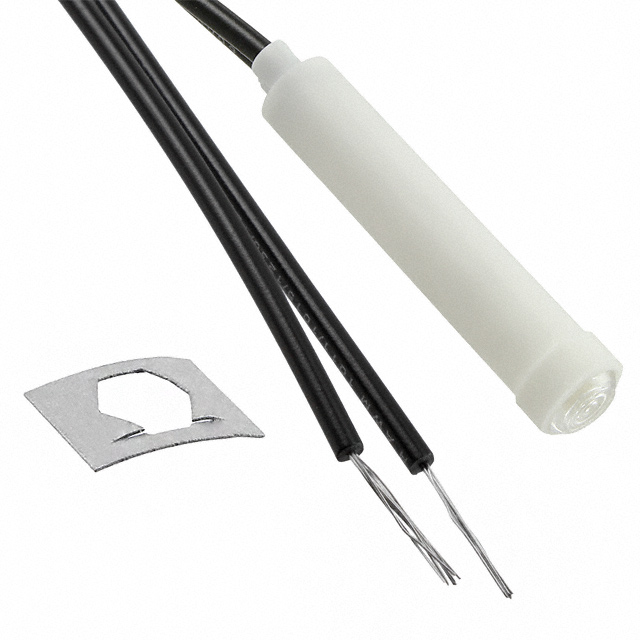

2110A2
