SQL_360_RTP
LENS RED FRESNEL RING SNAP INManufacturer: Visual Communications Company - VCC
Categories: Lenses
Quality Control: Learn More

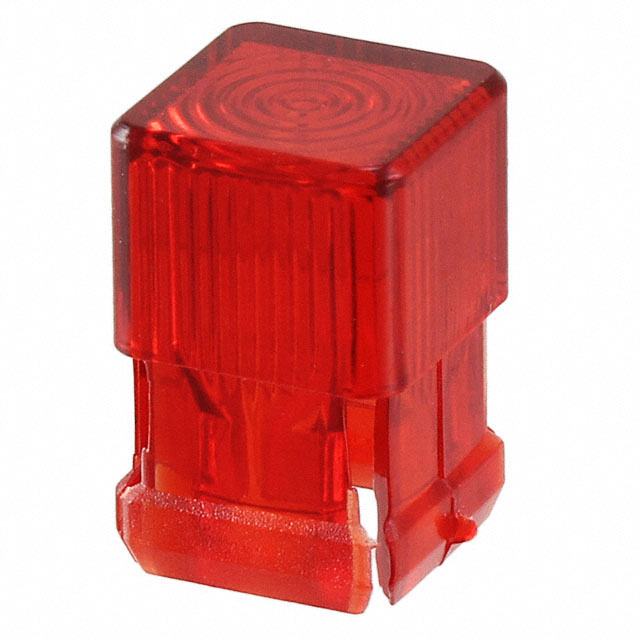

Visual Communications Company (VCC) SQL-360-RTP is a red Fresnel ring lens cap designed for panel mounting with a snap-in mechanism. This component features a clear polycarbonate lens with a 7.11mm x 7.11mm square profile and a convex top, utilizing a Fresnel ring optical pattern to effectively diffuse light from a single LED. Its robust construction makes it suitable for applications requiring reliable visual indication in demanding environments. The SQL-360-RTP is commonly employed in industrial control systems, medical equipment, and consumer electronics where clear and consistent LED illumination is critical. Supplied in bulk packaging, this lens cap offers a practical solution for integrating visual feedback into various electronic assemblies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Panel Mount, Snap-In |
| Material | Polycarbonate |
| Type | Lens Cap |
| Viewing Angle | - |
| Optical Pattern | Fresnel Ring |
| Lens Transparency | Clear |
| Lens Style | Square with Convex Top |
| Lens Size | 7.11mm x 7.11mm |
| For Use With/Related Manufacturer | General Purpose |
| Number of LEDs | 1 |
