VAOL-S8YP4
LED YELLOW CLEAR 0805 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

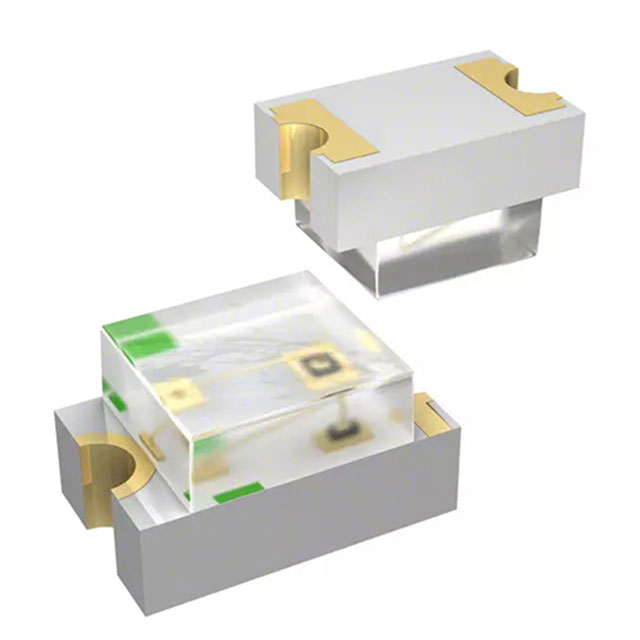

Visual Communications Company (VCC) VAOL-S8YP4 is a discrete, surface-mount LED component. This yellow LED, emitting at a dominant wavelength of 589nm and peak wavelength of 591nm, features a clear lens with a rectangular, flat-top style measuring 1.40mm x 1.25mm. Packaged in an 0805 (2012 Metric) SMD case, it has a forward voltage of 2V (typical) and a test current of 20mA, delivering 92mcd luminous intensity. The component is supplied on tape and reel with a standard configuration. Its dimensions are 2.00mm L x 1.25mm W and a maximum height of 1.30mm, with a wide 140° viewing angle. This LED is suitable for indication applications in the industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Yellow |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 92mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 591nm |
| Wavelength - Dominant | 589nm |
| Supplier Device Package | 0805 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
