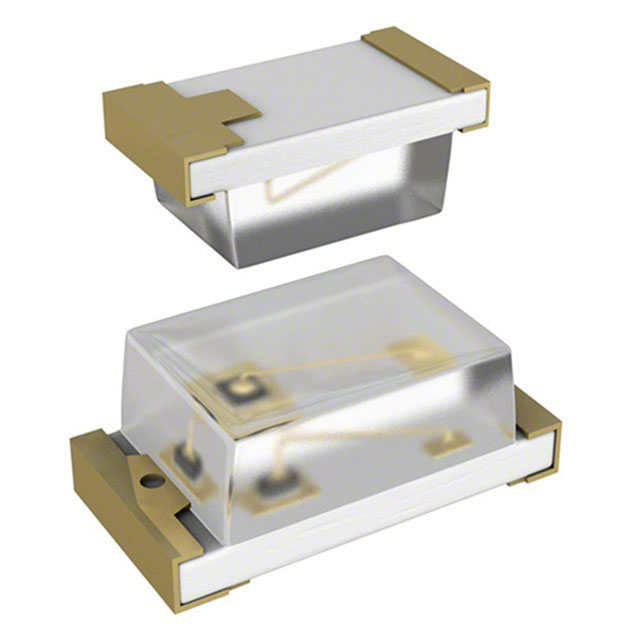

VAOL-S6RP4
LED RED CLEAR 0603 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company (VCC) VAOL-S6RP4 is a red, clear lens, 0603 (1608 Metric) SMD LED with a standard configuration. This discrete LED component operates with a typical forward voltage of 2V and a test current of 10mA, achieving a millicandela rating of 33mcd. Its dominant wavelength is 638nm, with a peak wavelength of 650nm, and a wide viewing angle of 120°. The LED measures 1.60mm in length and 0.80mm in width, with a lens size of 1.20mm x 0.80mm and a height of 0.60mm. Supplied in Tape & Reel (TR) packaging, this component is suitable for surface mount applications. It finds use in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Red |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 33mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 650nm |
| Wavelength - Dominant | 638nm |
| Supplier Device Package | 0603 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
