VAOL-S2RP4
LED RED CLEAR 2PLCC SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

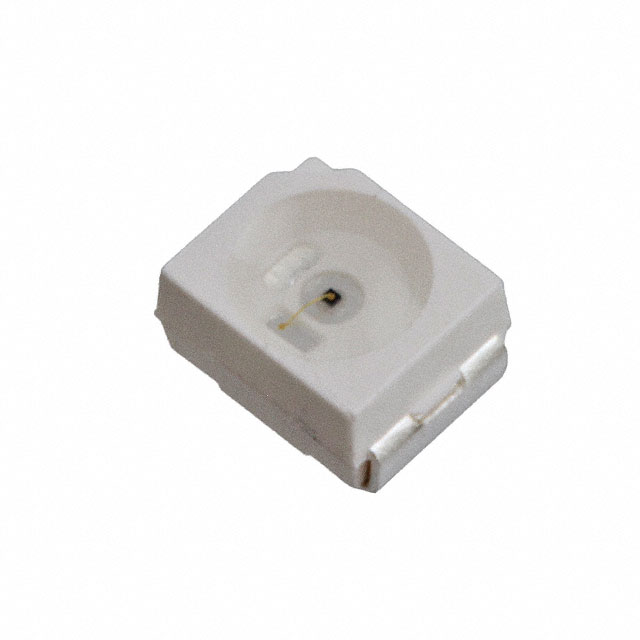

Visual Communications Company (VCC) VAOL-S2RP4 is a red LED with a dominant wavelength of 626nm and a peak wavelength of 624nm. This discrete indicator component is housed in a 2-PLCC surface-mount package, specifically a 2-SMD, J-Lead configuration. It offers a typical forward voltage of 2.05V and a test current of 20mA, producing a luminous intensity of 630mcd. The clear, colorless lens features a round with flat top style, providing a wide 120° viewing angle. The component measures 3.10mm L x 2.70mm W with a maximum height of 2.10mm. This VCC VAOL-S2RP4 is commonly utilized in industrial automation, medical equipment, and consumer electronics for clear visual status indication. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 3.10mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 630mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 624nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
