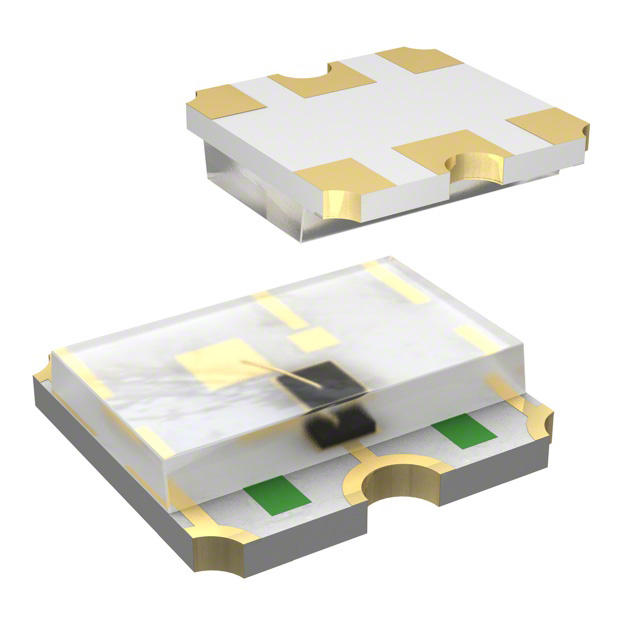

VAOL-S19337R6GHBH
LED RGB CLEAR SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 6-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd Red, 180mcd Green, 50mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 0.45mm |
| Wavelength - Peak | 632nm Red, 518nm Green, 468nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 1.60mm |
