VAOL-S12RP4
LED RED CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

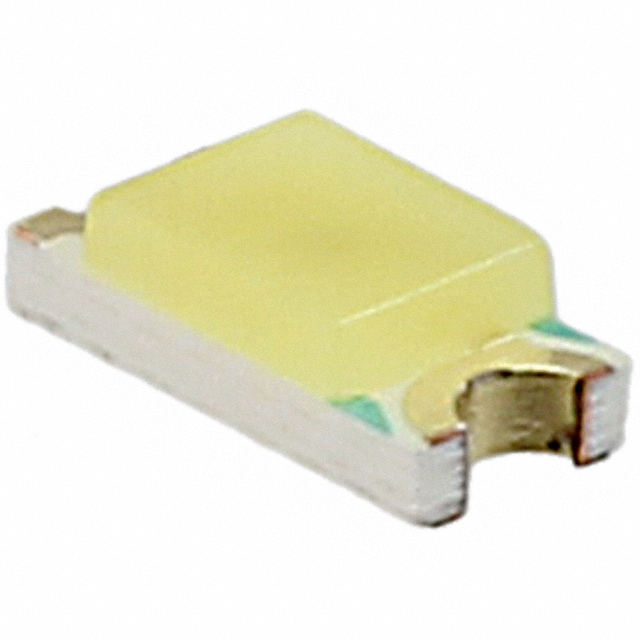

Visual Communications Company (VCC) VAOL-S12RP4 is a red, clear lens, 1206 (3216 Metric) surface mount LED designed for indication applications. This discrete LED emits light at a dominant wavelength of 624nm with a peak wavelength of 632nm. It features a forward voltage (Vf) of 2V (typical) and a test current of 20mA, producing a millicandela rating of 74mcd. The rectangular lens, measuring 2.00mm x 1.50mm with a flat top, offers a wide viewing angle of 130°. The component's dimensions are 3.20mm L x 1.50mm W, with a maximum height of 1.30mm. Packaging is provided on Tape & Reel (TR). This component is suitable for use in industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 74mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 632nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.50mm |
