VAOL-5LAE2
LED RED DIFFUSED T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

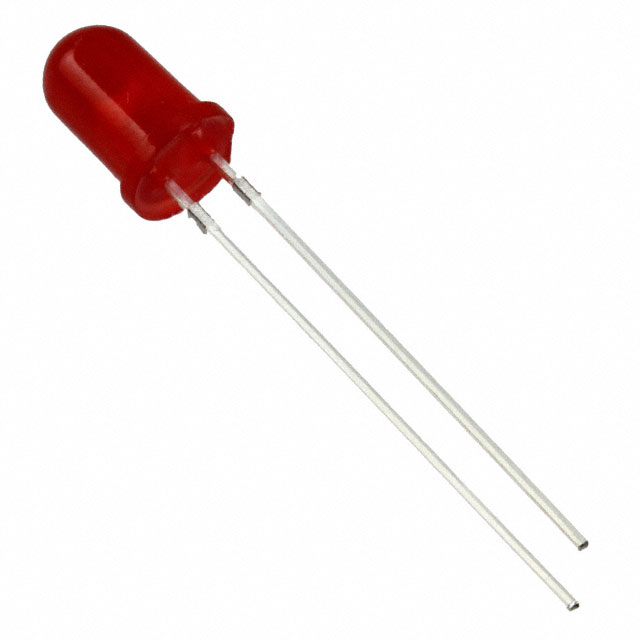

Visual Communications Company (VCC) VAOL-5LAE2 is a diffused red LED designed for through-hole mounting. This discrete indicator operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a luminous intensity of 80mcd. The dominant wavelength is 640nm, providing a distinct red hue. The lens is red, round with a domed top, and measures 4.80mm in diameter, with a diffused finish for broader light distribution. The component has a maximum height of 8.85mm and a viewing angle of 60°. This part is commonly utilized in industrial control, consumer electronics, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 8.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 4.80mm Dia |
