L131DY
LED YELLOW DIFFUSED T-1 3/4 T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company (VCC) L111 series L131DY is a diffused yellow T-1 3/4 through-hole LED designed for robust indication applications. This component features a typical forward voltage of 2.1V and a peak wavelength of 590nm, delivering 20mcd luminous intensity at a standard 20mA test current. The domed top lens provides a wide 60° viewing angle, ensuring visibility across various orientations. Commonly utilized in industrial control, consumer electronics, and general signaling, the L131DY is supplied in bulk packaging for efficient integration into high-volume manufacturing processes.
Additional Information
Series: L111RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 8.61mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 (5mm) |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy
4307T5
LED GREEN DIFFUSED T/H

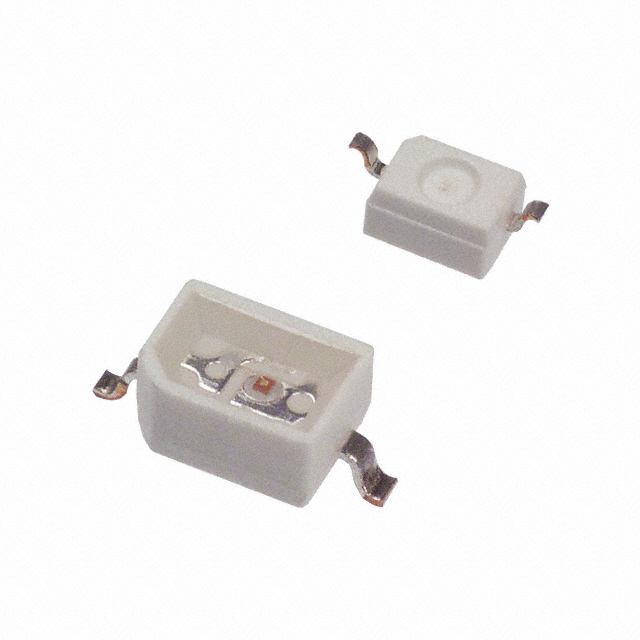

CMD93-21VRC/TR8
LED RED CLEAR GULL WING SMD

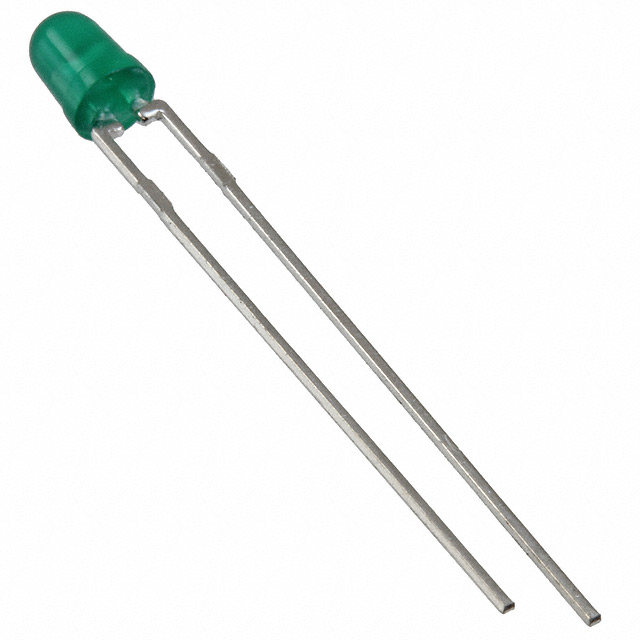

4302F5-12V
