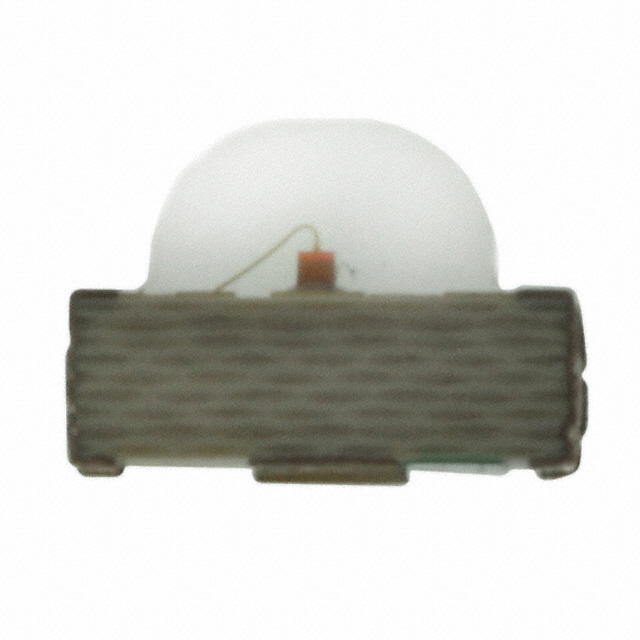

CMDA7CY7A1Z
LED YELLOW CLEAR SMD R/AManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company (VCC) CMDA7CY7A1Z is a yellow, through-hole mounting LED designed for discrete indication. Emitting at a dominant wavelength of 590nm with a peak wavelength of 580nm, this component features a clear, colorless lens with a rectangular, domed top shape, measuring 2.00mm x 1.00mm. Operating at a typical forward voltage of 2.1V, it achieves a millicandela rating of 3mcd at a 20mA test current. The 2-SMD, No Lead package with a 90° viewing angle is suitable for applications in industrial automation, medical equipment, and consumer electronics where reliable visual feedback is critical. This component is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 580nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
