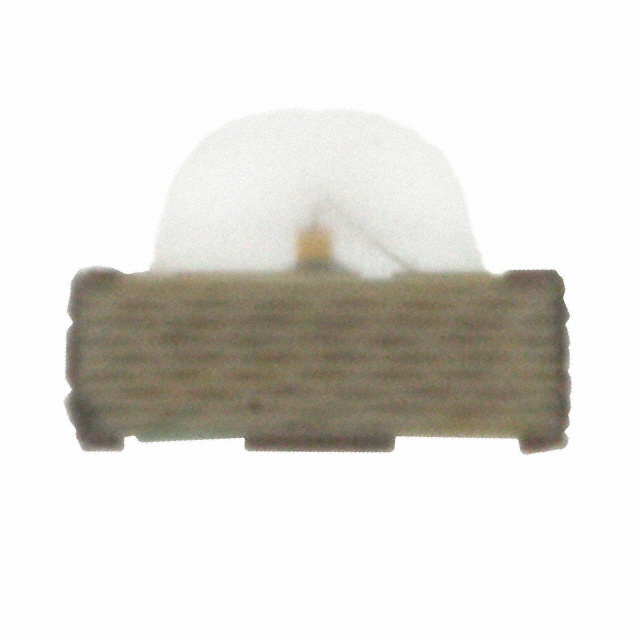

CMDA7AY7A1Z
LED YELLOW CLEAR SMD R/AManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company - VCC CMDA7AY7A1Z is a discrete surface-mount LED designed for indication applications. This yellow LED, emitting at a dominant wavelength of 572nm and peak wavelength of 570nm, operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a millicandela rating of 8.8mcd. The component features a clear, colorless lens with a domed top, measuring 2.00mm x 1.00mm, and is housed in a 2-SMD, No Lead package. Its dimensions are 3.00mm L x 2.00mm W with a maximum height of 1.00mm, and it offers a wide viewing angle of 90°. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics. Supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 570nm |
| Wavelength - Dominant | 572nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
