CMDA5CY7D1Z
LED YELLOW DIFFUSED SMD R/AManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

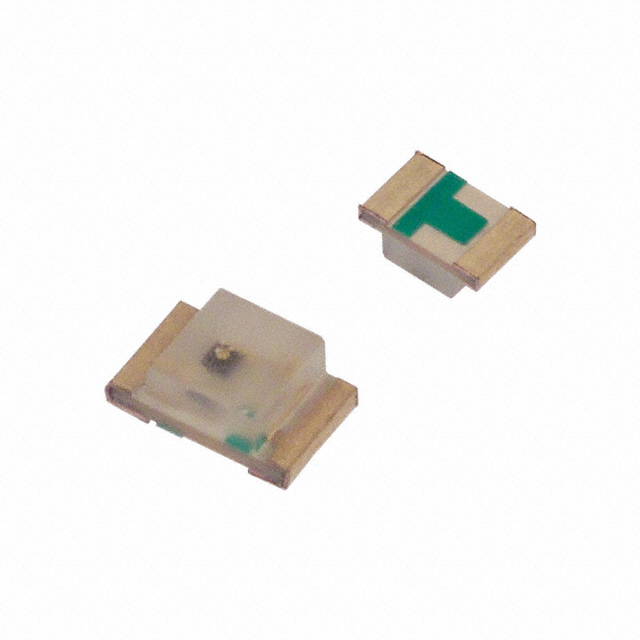

Visual Communications Company (VCC) CMDA5CY7D1Z is a diffused yellow LED designed for Surface Mount, Right Angle applications. This discrete component features a 2-SMD, No Lead package, measuring 2.00mm L x 0.80mm W with a lens size of 1.40mm x 1.25mm. The LED exhibits a typical forward voltage of 2.2V and a millicandela rating of 3.7mcd at a test current of 20mA. Its diffused lens style provides a wide viewing angle of 150°, making it suitable for indication purposes across various industries including industrial automation, consumer electronics, and medical devices. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Yellow |
| Size / Dimension | 2.00mm L x 0.80mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 3.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 150° |
| Height (Max) | - |
| Wavelength - Peak | 580nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
