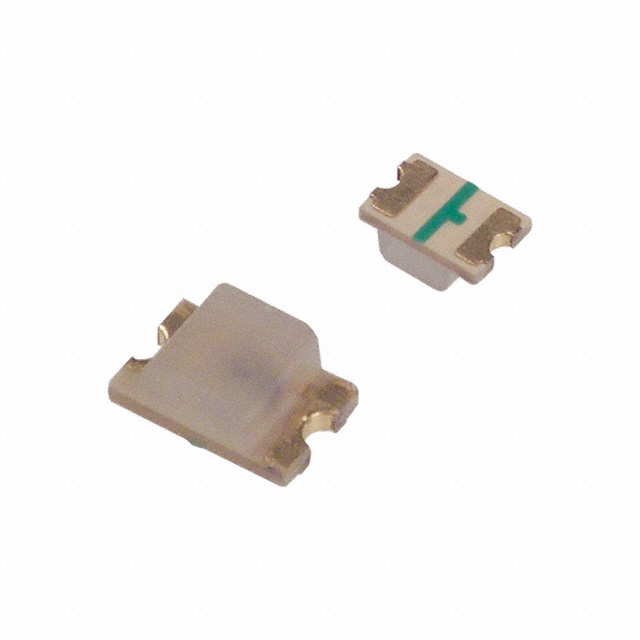

CMDA5BA7D1S
LED ORANGE DIFFUSED 0805 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company (VCC) discrete orange LED, part number CMDA5BA7D1S, is offered in an 0805 (2012 Metric) package. This surface-mount device features a diffused lens for wide-angle illumination, with a typical forward voltage of 1.9V at 20mA test current. The LED exhibits a peak wavelength of 609nm and a radiant intensity of 90mcd. Its compact dimensions of 2.00mm x 1.25mm and a height of 0.80mm make it suitable for space-constrained applications within industrial automation, medical devices, and consumer electronics. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Orange |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 90mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 609nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 0805 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
